100 Series – Inverted Roof

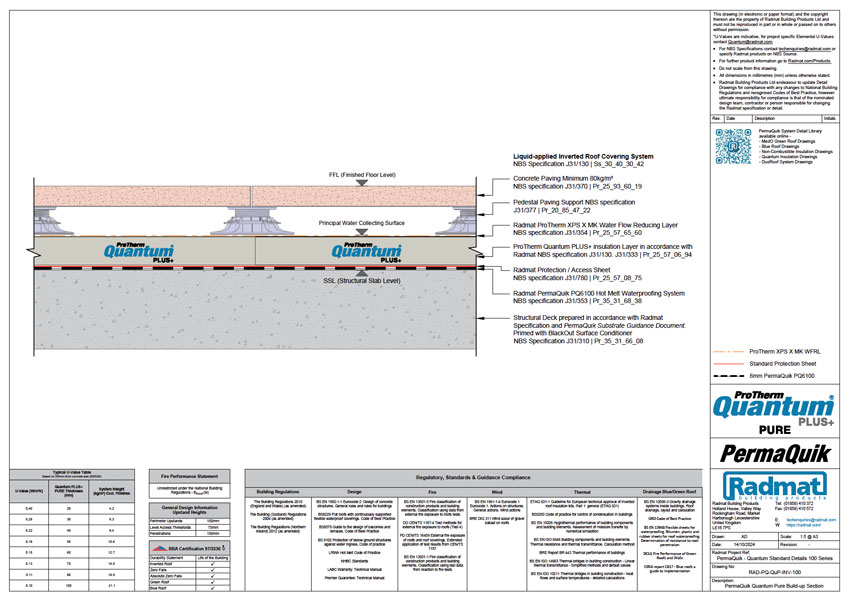

PermaQuik 100 CAD Details

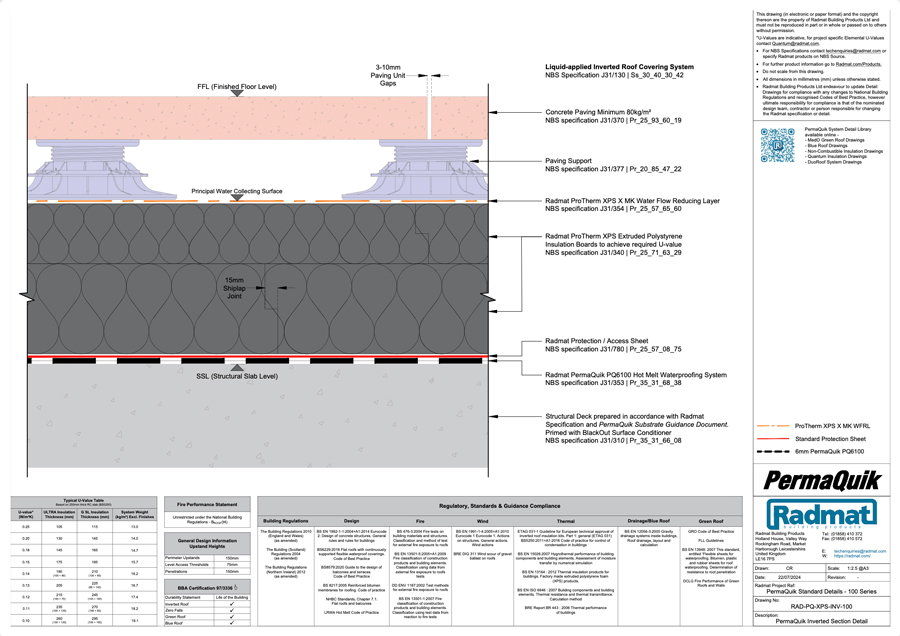

Inverted Roof Section Detail
Inverted Roof Section Detail
PermaQuik 101 CAD Details

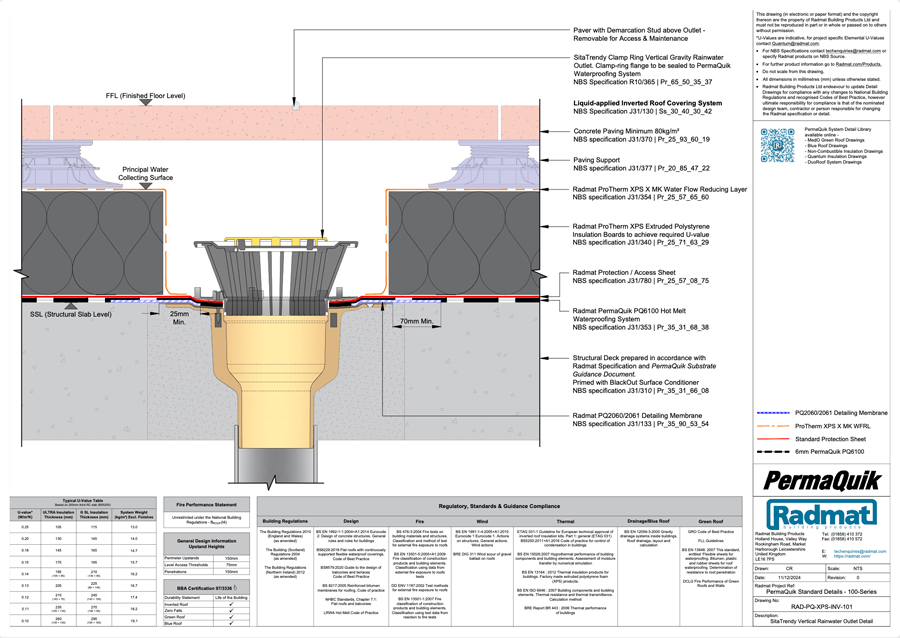

SitaTrendy Vertical Rainwater Outlet Detail
SitaTrendy Vertical Rainwater Outlet Detail

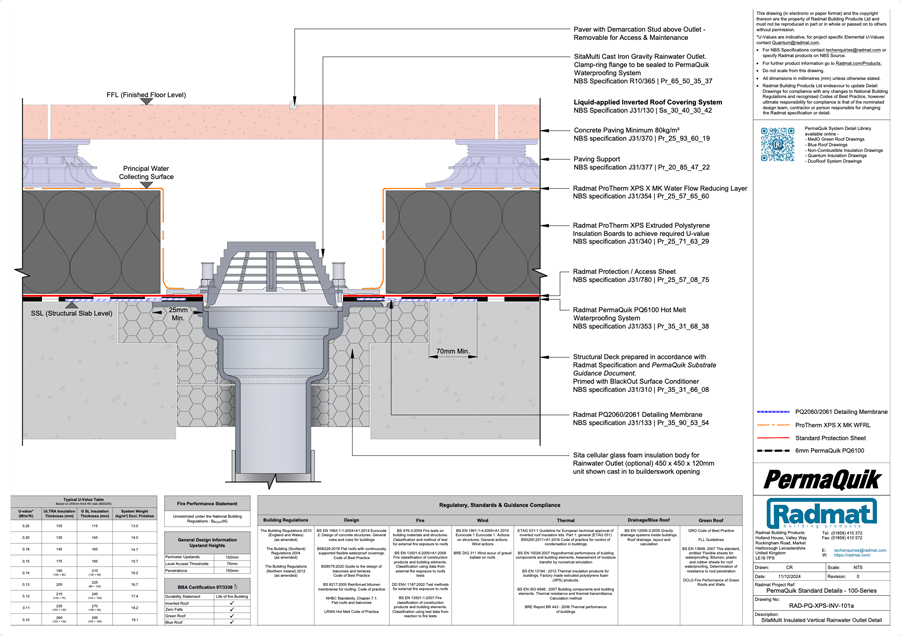

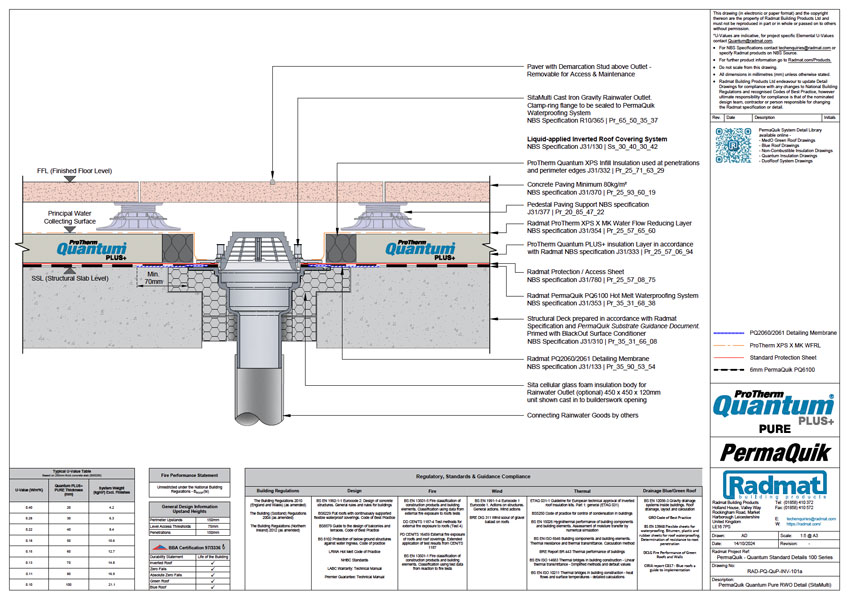

PermaQuik 101a CAD Details
SitaMulti Vertical Rainwater Outlet Detail
SitaMulti Vertical Rainwater Outlet Detail
PermaQuik 101b CAD Details

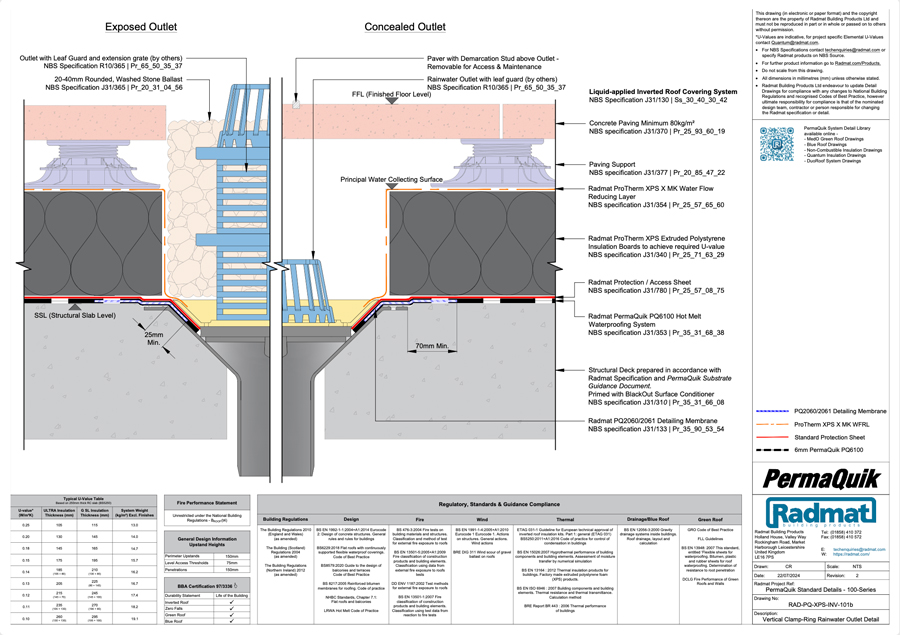

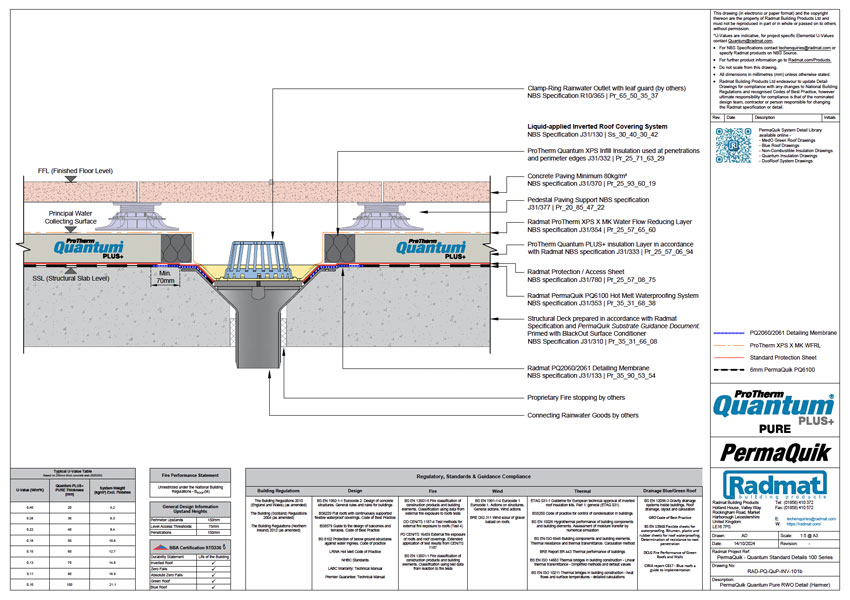

Vertical Clamp-Ring Rainwater Outlet Detail
Vertical Clamp-Ring Rainwater Outlet Detail
PermaQuik 101c CAD Details

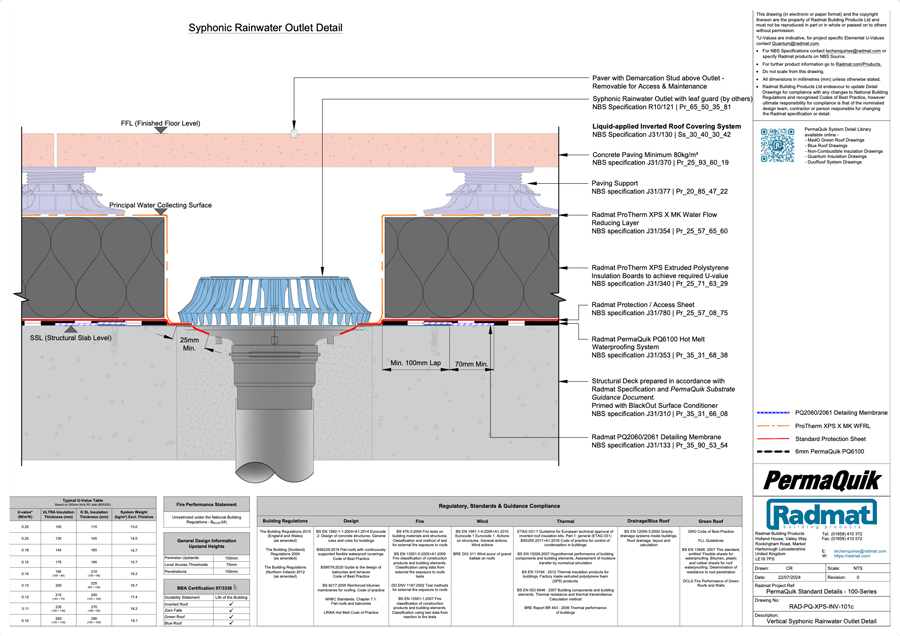

Syphonic Rainwater Outlet Detail
Syphonic Rainwater Outlet Detail
PermaQuik 101d CAD Details

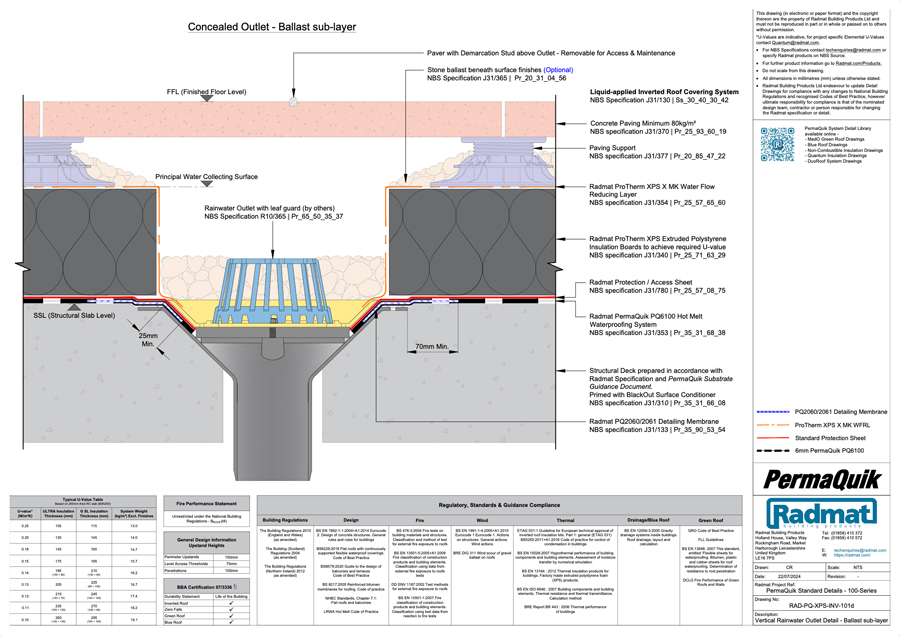

Clamp-Ring Rainwater Outlet Detail - w-Ballast
Clamp-Ring Rainwater Outlet Detail - w-Ballast
PermaQuik 102 CAD Details

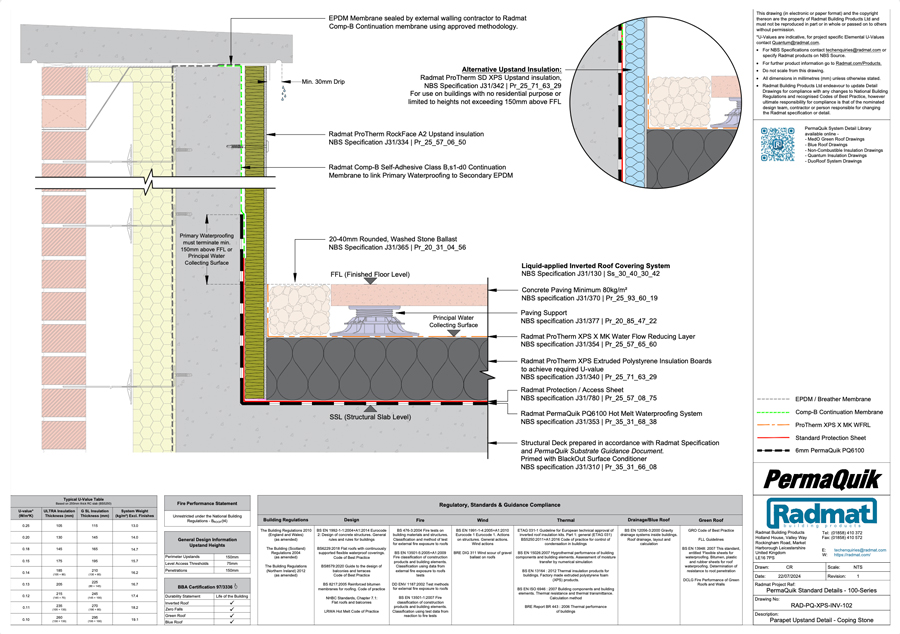

Parapet Upstand Detail - Coping Stone
Parapet Upstand Detail - Coping Stone

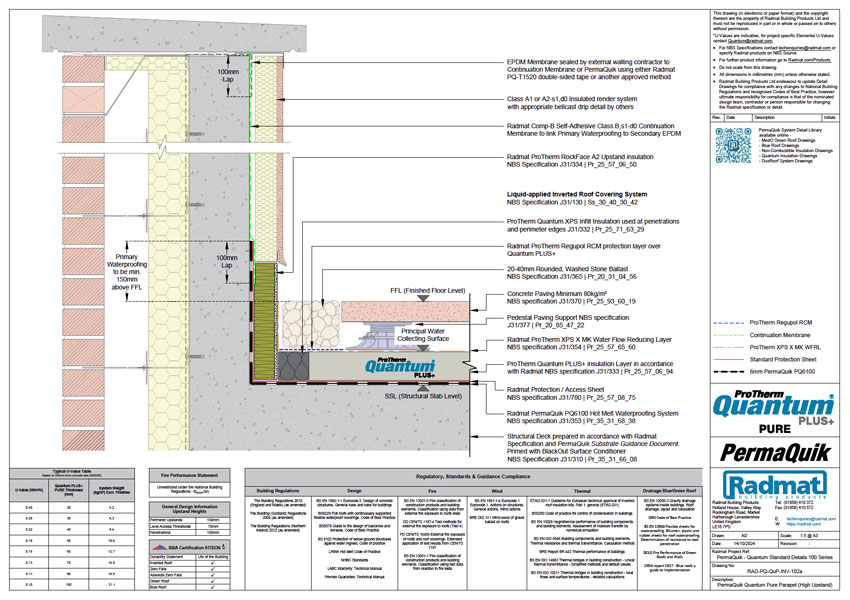

PermaQuik 102a CAD Details

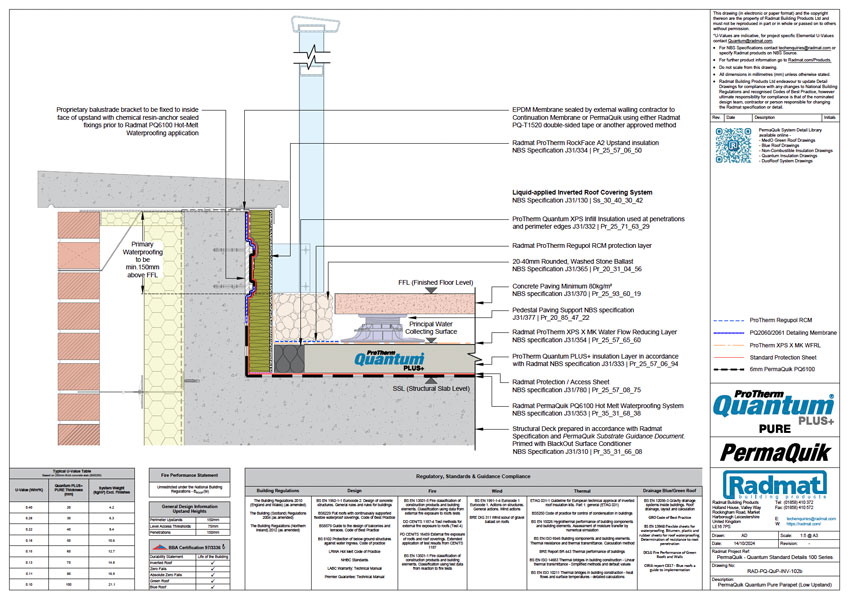

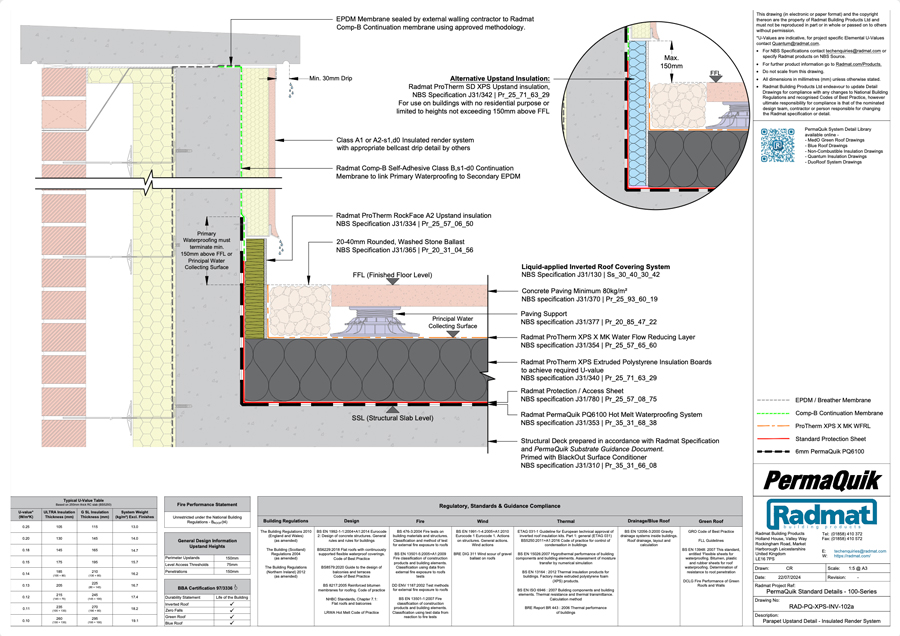

Parapet Upstand Detail - Insulated Render System RFA2
Parapet Upstand Detail - Insulated Render System RFA2
PermaQuik 102b CAD Details

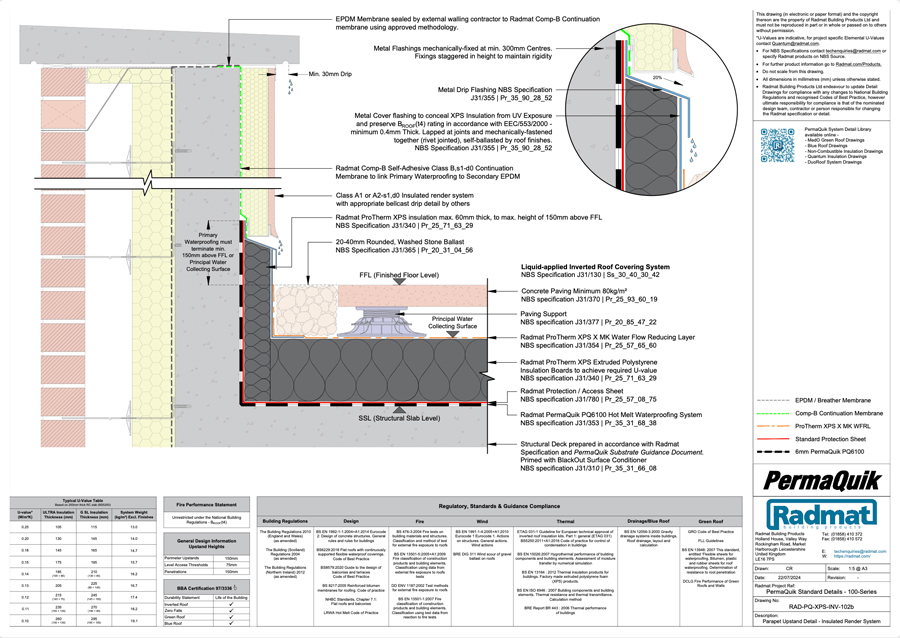

Parapet Upstand Detail - Insulated Render System XPS
Parapet Upstand Detail - Insulated Render System XPS
PermaQuik 102c CAD Details

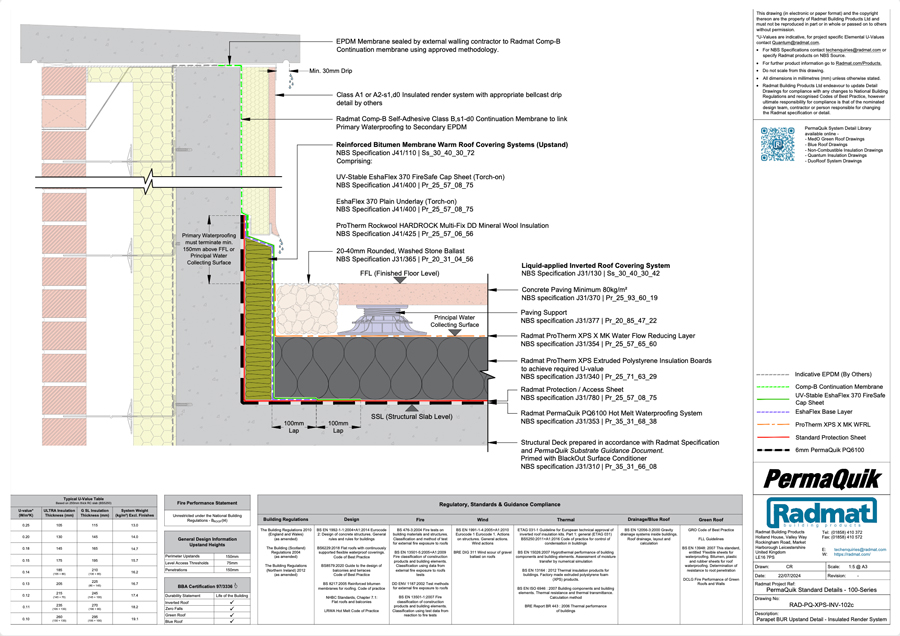

Parapet Upstand Detail - Insulated Render BUR MW Upstand
Parapet Upstand Detail - Insulated Render BUR MW Upstand
PermaQuik 102d CAD Details

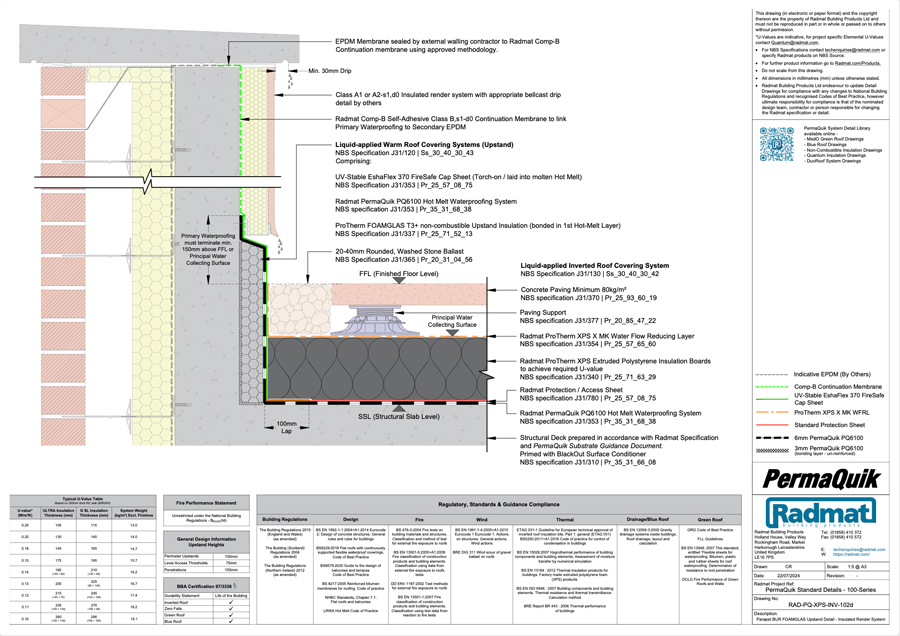

Parapet Upstand Detail - Insulated Render BUR FG Upstand
Parapet Upstand Detail - Insulated Render BUR FG Upstand
PermaQuik 103a CAD Details

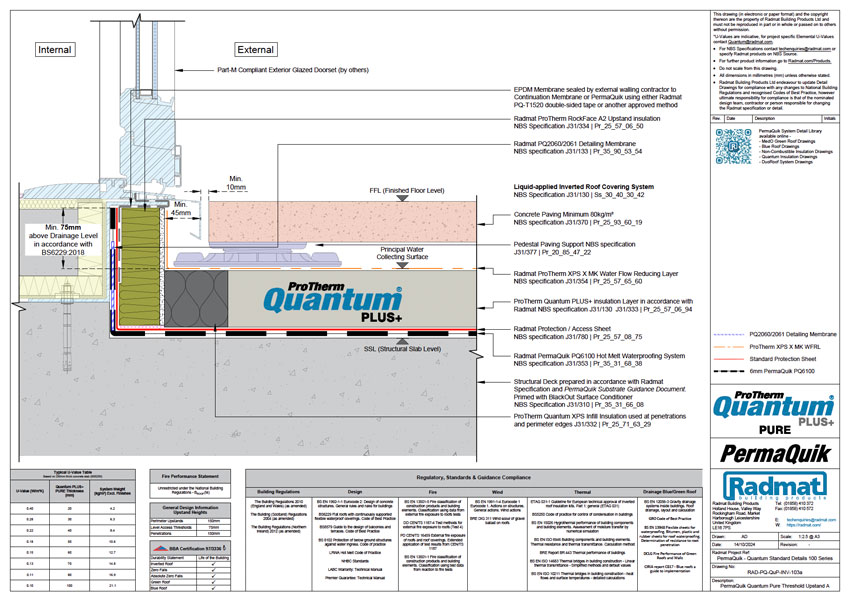

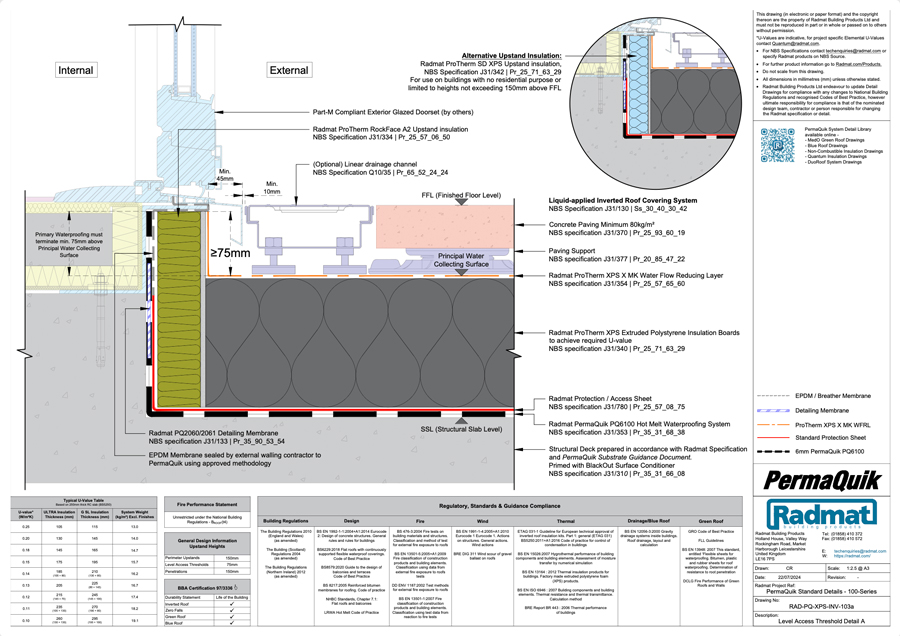

Level Access Threshold Detail A
Level Access Threshold Detail A
PermaQuik 103b CAD Details

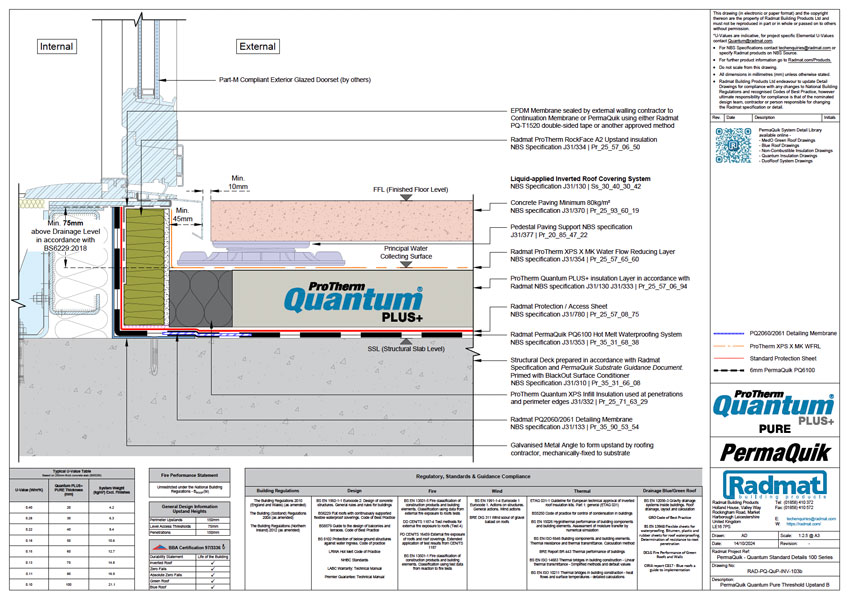

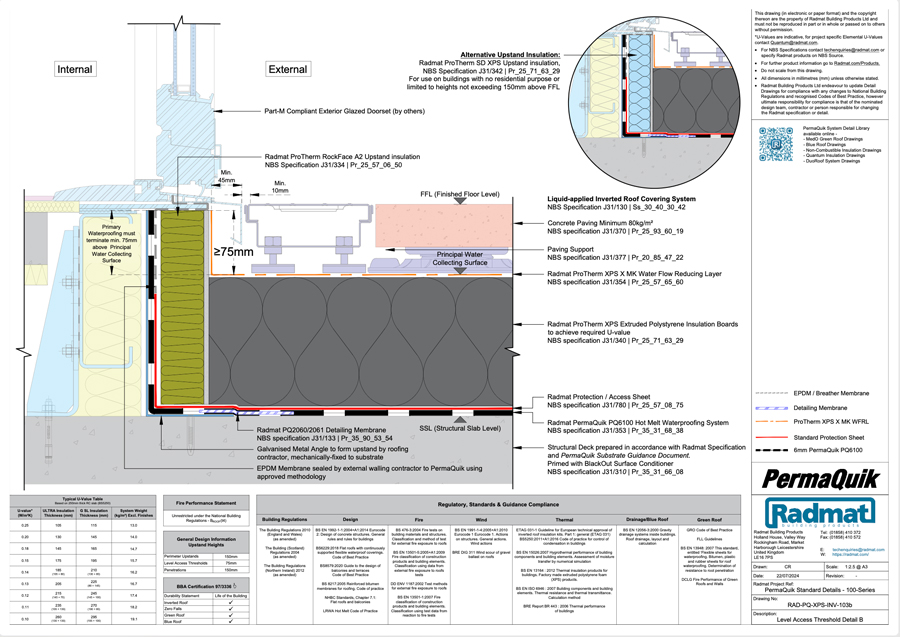

Level Access Threshold Detail B
Level Access Threshold Detail B

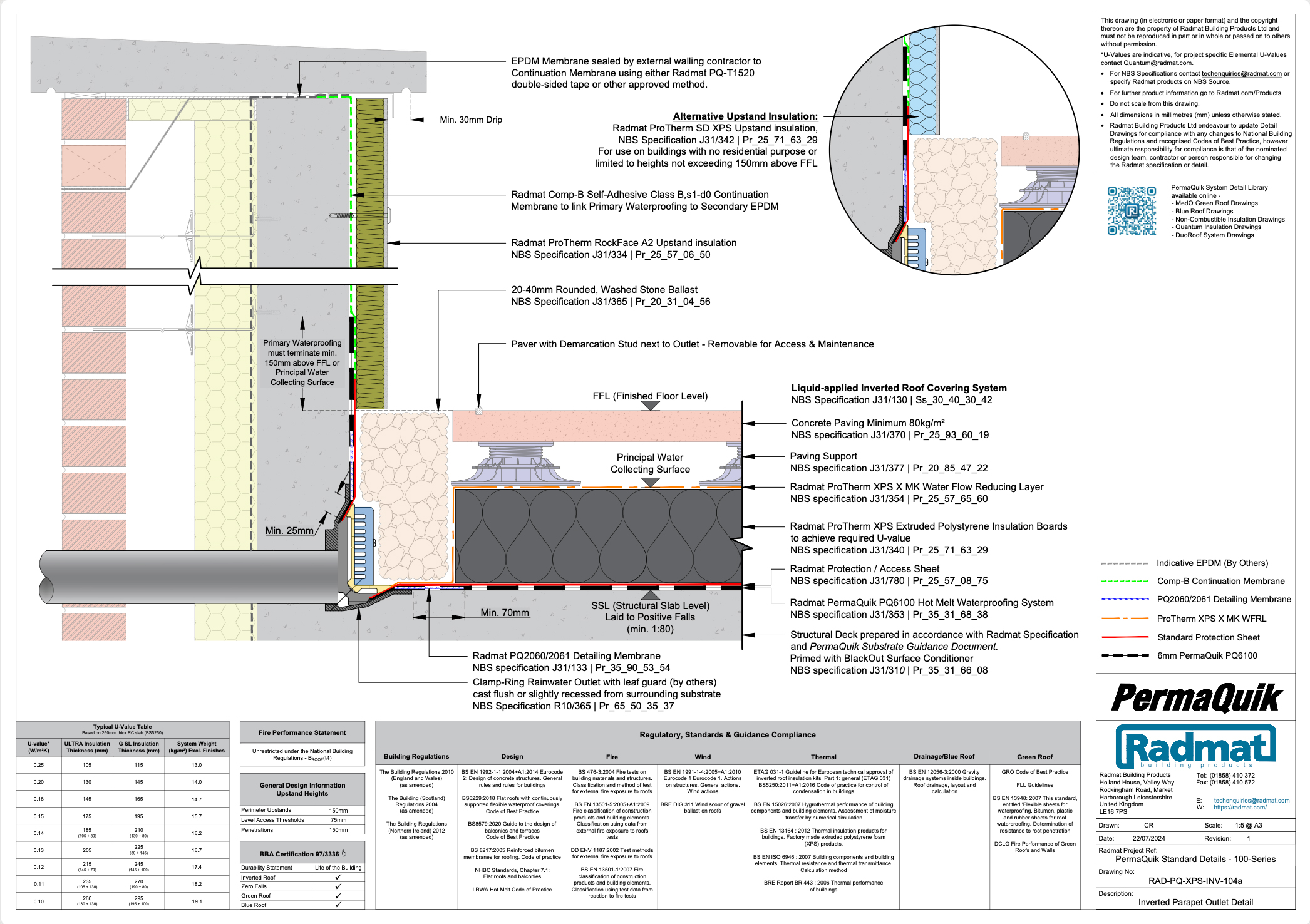

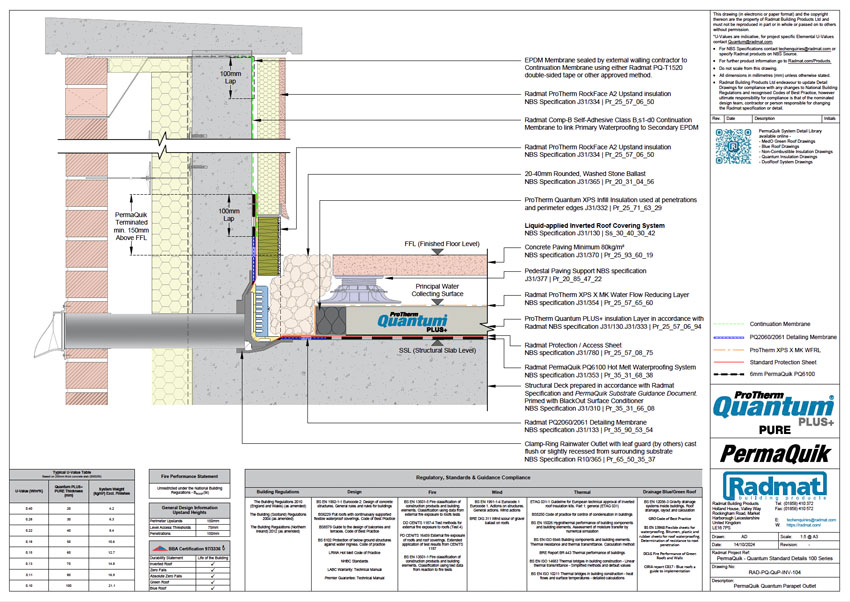

PermaQuik 104a CAD Details
Parapet Outlet Detail
Parapet Outlet Detail
PermaQuik 104ba CAD Details

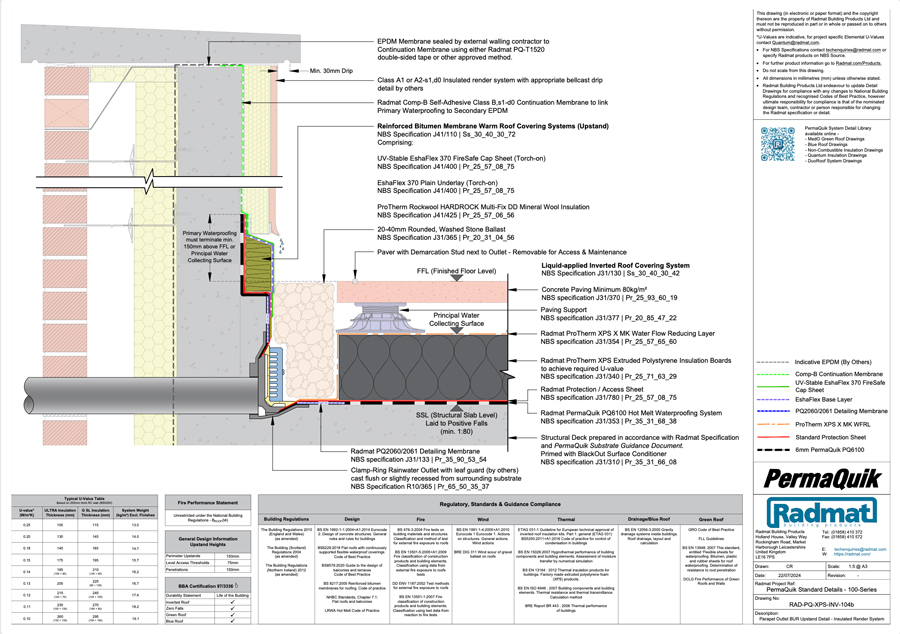

Parapet Outlet Detail - BUR Upstand
Parapet Outlet Detail - BUR Upstand

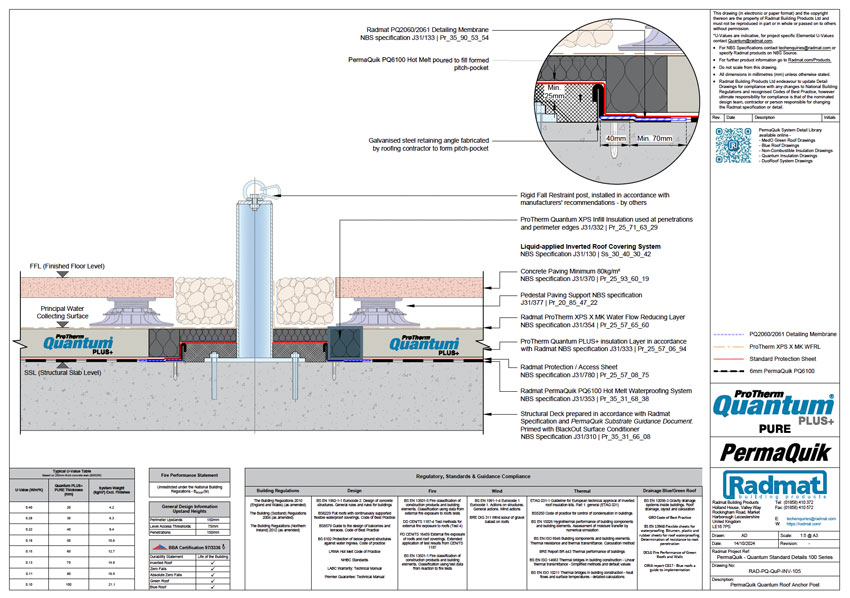

PermaQuik 105a CAD Details

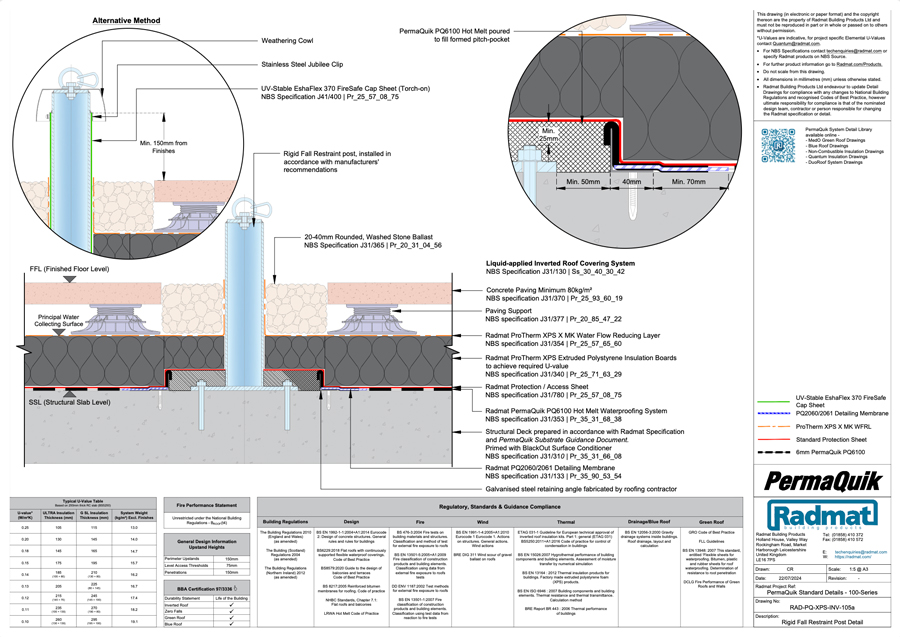

Rigid Fall Restraint Post Detail
Rigid Fall Restraint Post Detail
PermaQuik 105b CAD Details

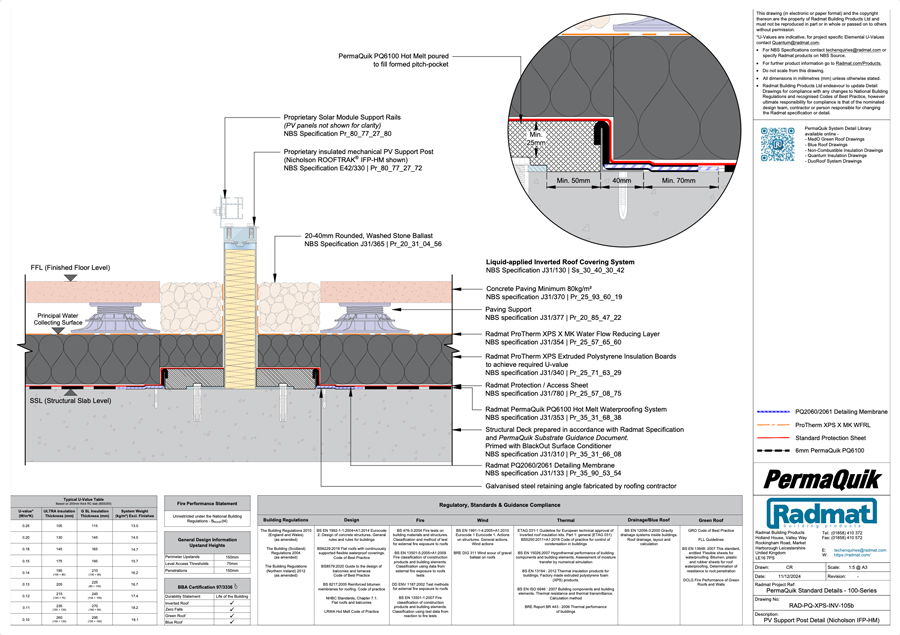

PV Support Post Detail
PV Support Post Detail
PermaQuik 106a CAD Details

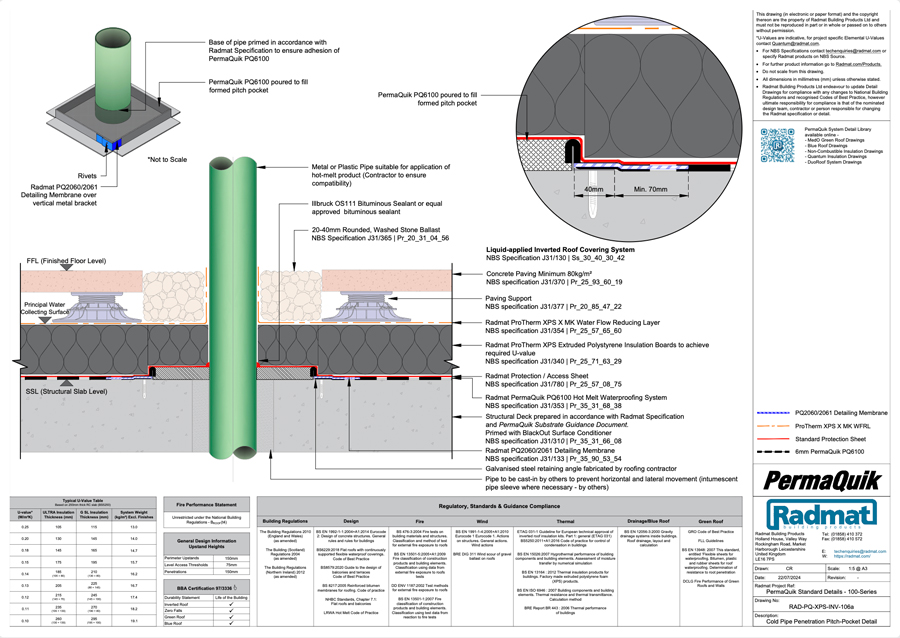

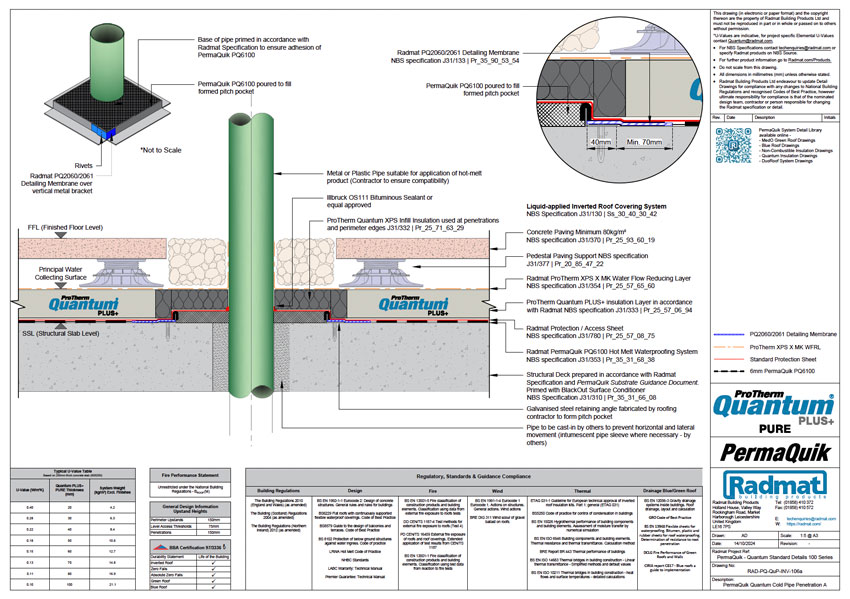

Cold Pipe Pitch Pocket
Cold Pipe Pitch Pocket
PermaQuik 106b CAD Details

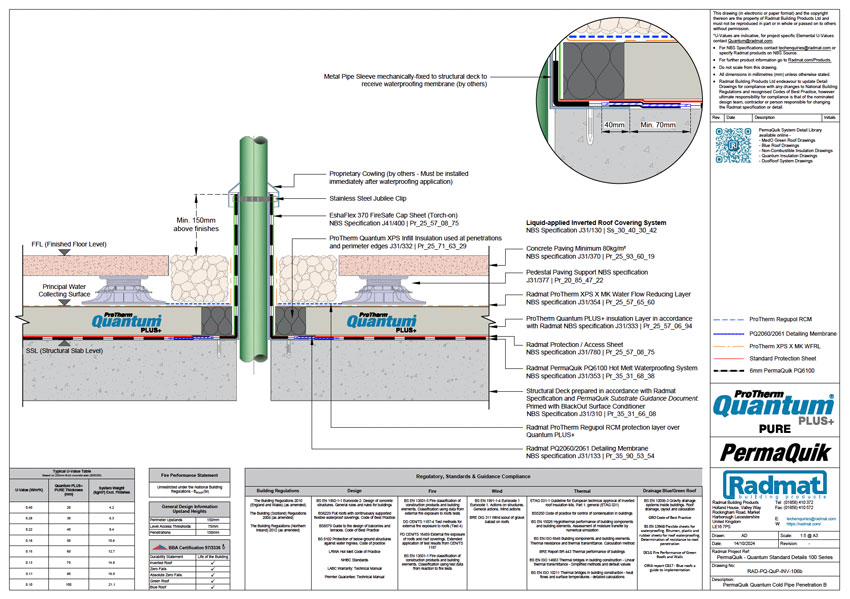

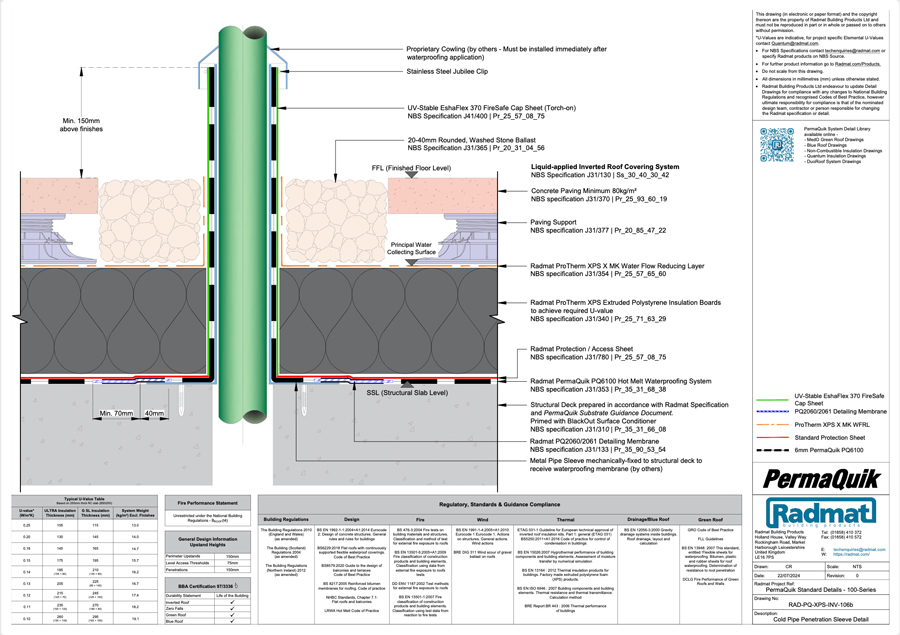

Cold Pipe Penetration Sleeve Detail
Cold Pipe Penetration Sleeve Detail
PermaQuik 106c CAD Details

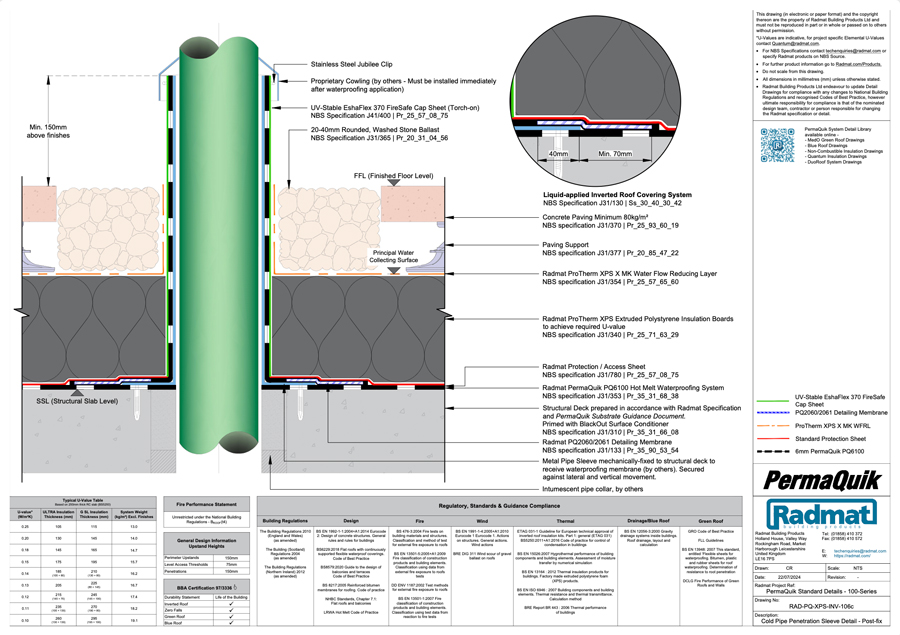

Cold Pipe Penetration Sleeve Detail - Post-fix
Cold Pipe Penetration Sleeve Detail - Post-fix
PermaQuik 107a CAD Details

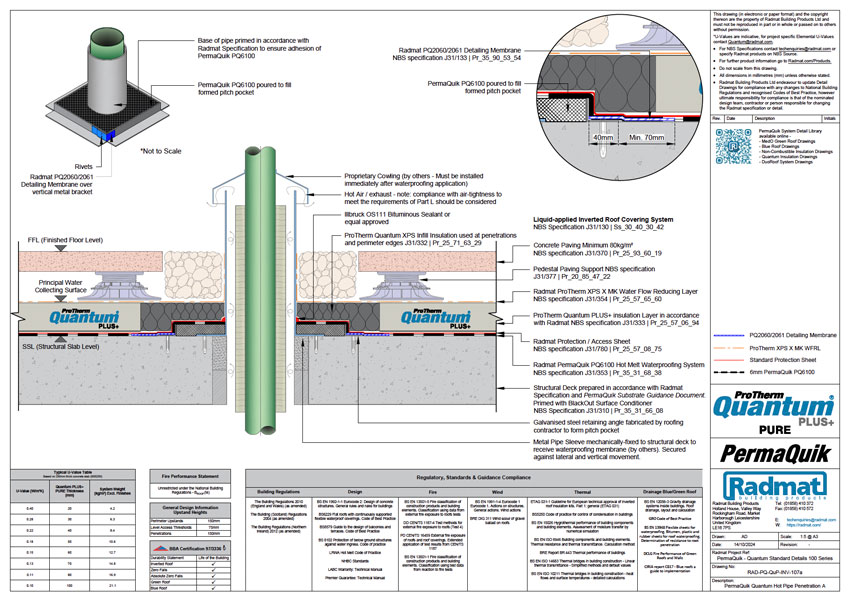

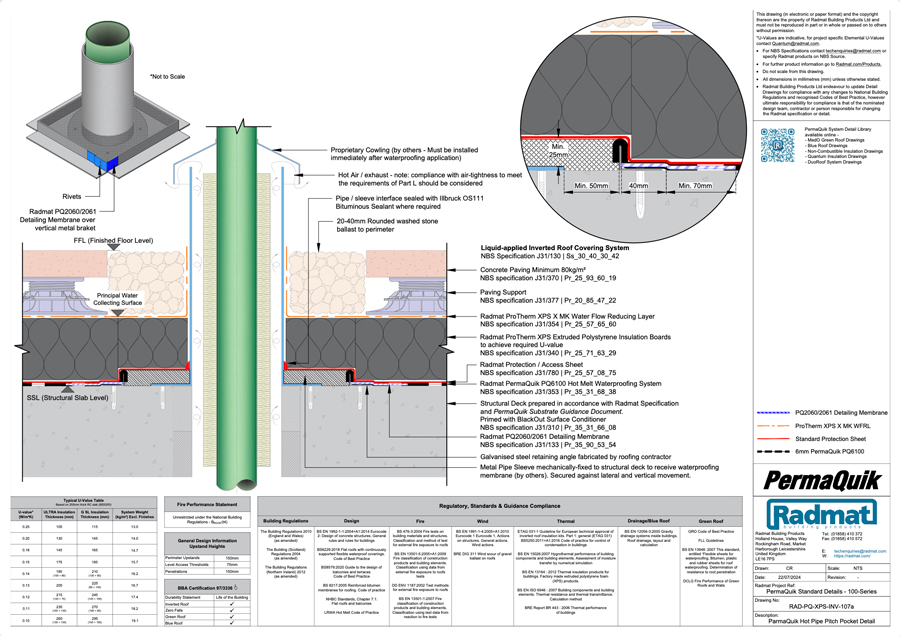

Hot Pipe Penetration Pitch-Pocket Detail
Hot Pipe Penetration Pitch-Pocket Detail

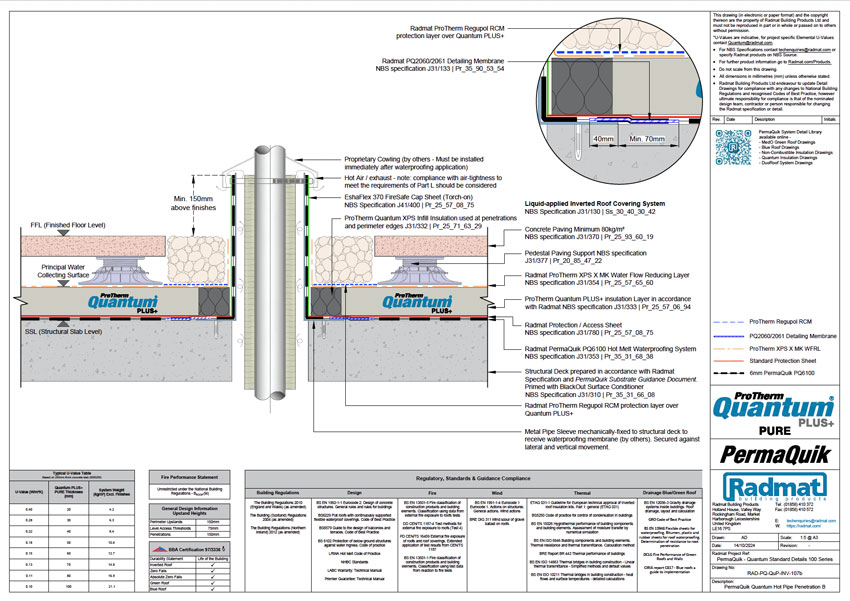

PermaQuik 107b CAD Details

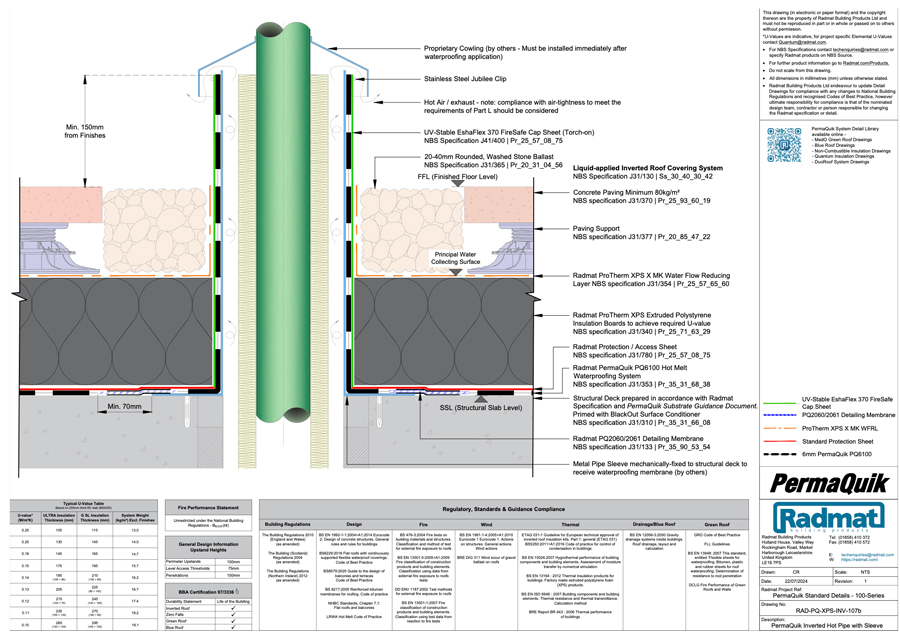

Hot Pipe Penetration Sleeve Detail
Hot Pipe Penetration Sleeve Detail
PermaQuik 108 CAD Details

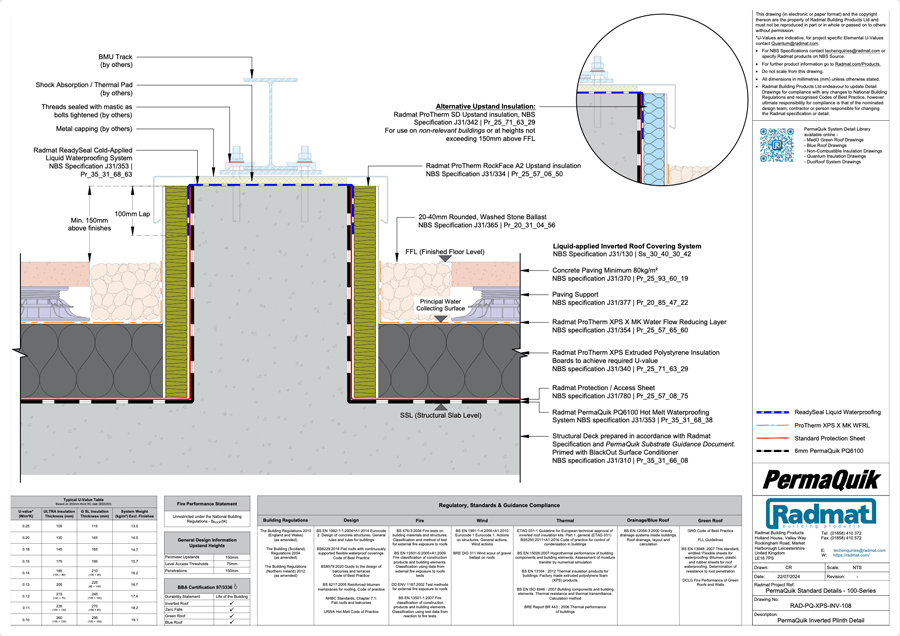

Plinth detail
Plinth detail
PermaQuik 109a CAD Details

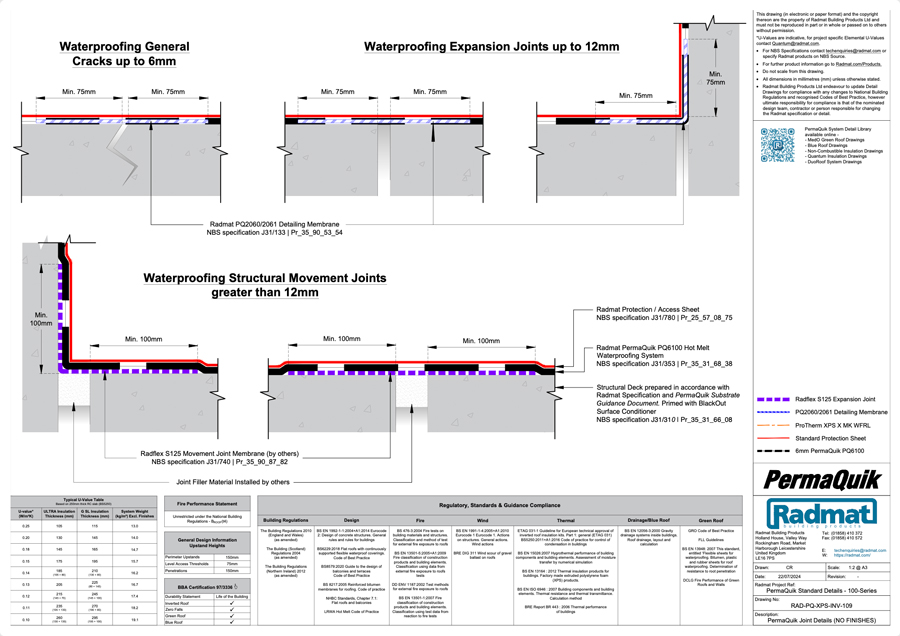

Joint details
Joint details
PermaQuik 109b CAD Details

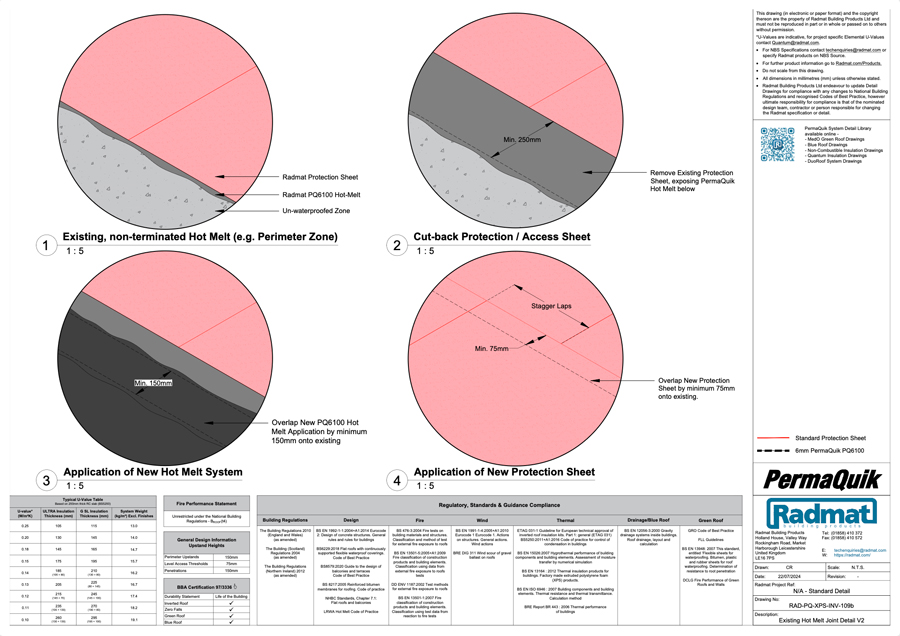

Existing Hot-Melt Joint Detail
Existing Hot-Melt Joint Detail
PermaQuik 109c CAD Details

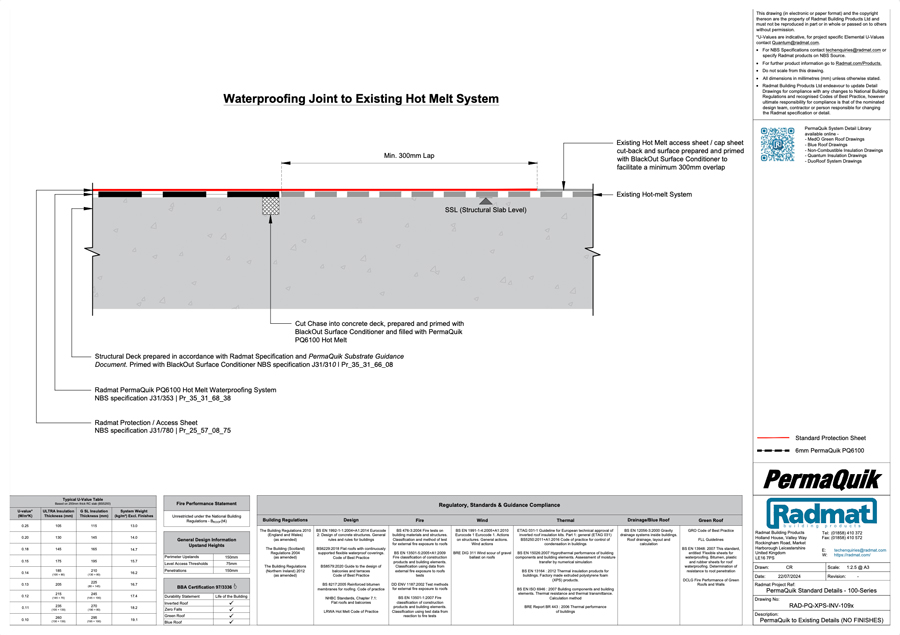

Existing Hot-Melt Joint Detail V2
Existing Hot-Melt Joint Detail V2
PermaQuik 110b CAD Details
Pitch-Pocket Detail
Pitch-Pocket Detail
PermaQuik 110b CAD Details

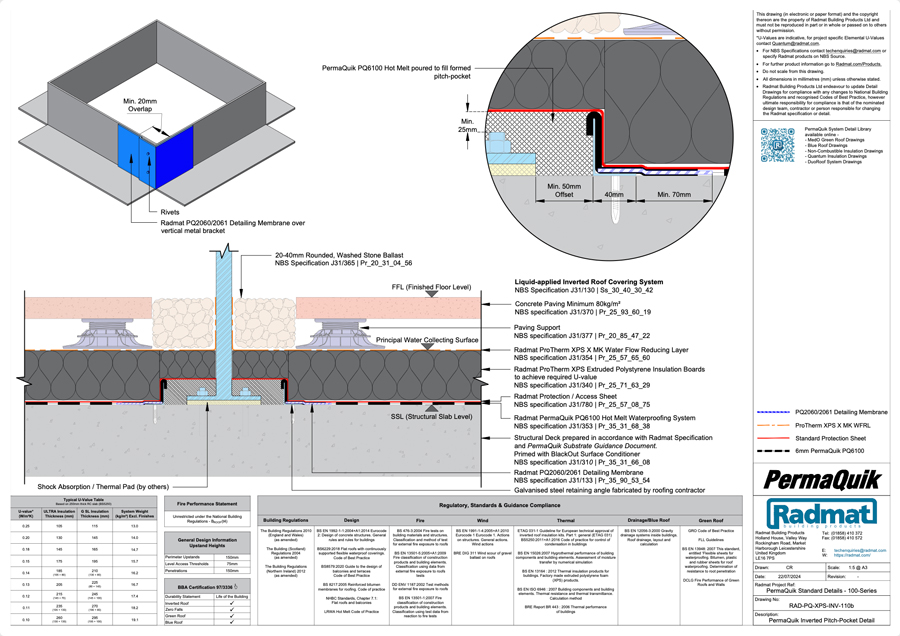

Inverted Pitch Pocket Detail
Inverted Pitch Pocket Detail
PermaQuik 111 CAD Details

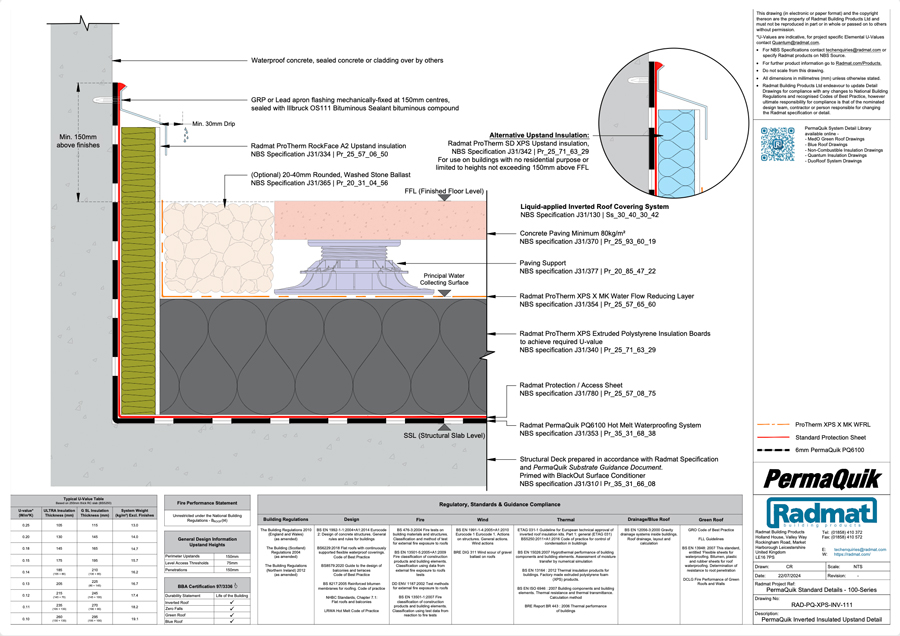

Insulated Upstand Detail
Insulated Upstand Detail

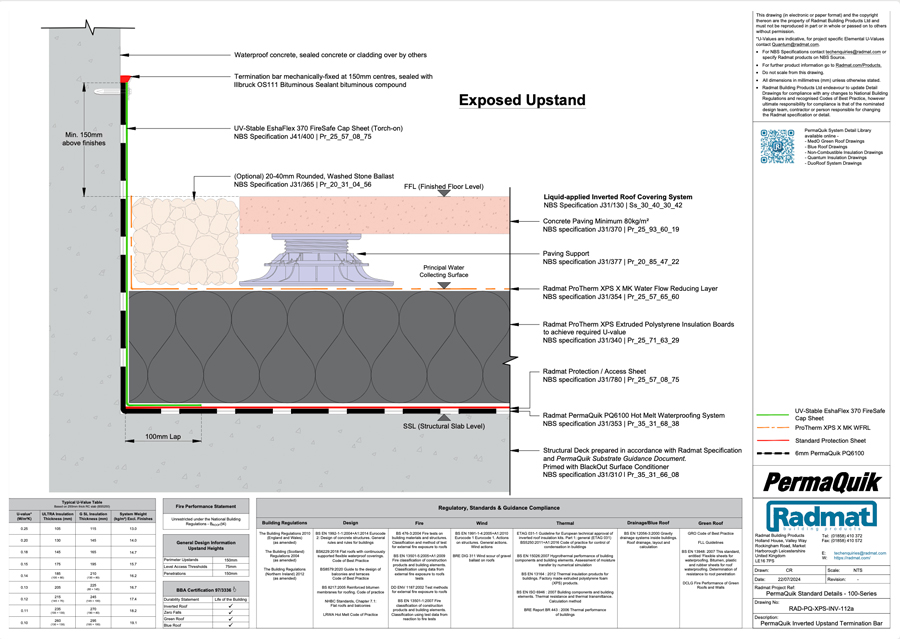

PermaQuik 112a CAD Details
Un-Insulated Upstand Detail - Termination Bar
Un-Insulated Upstand Detail - Termination Bar
PermaQuik 112b CAD Details

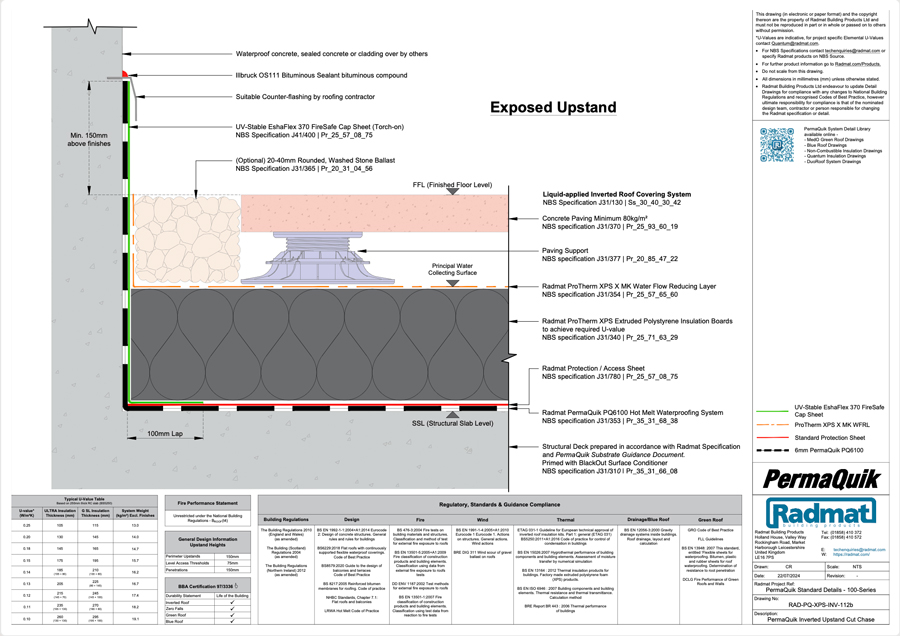

Un-Insulated Upstand - Counter-flashing
Un-Insulated Upstand - Counter-flashing
PermaQuik 113 CAD Details

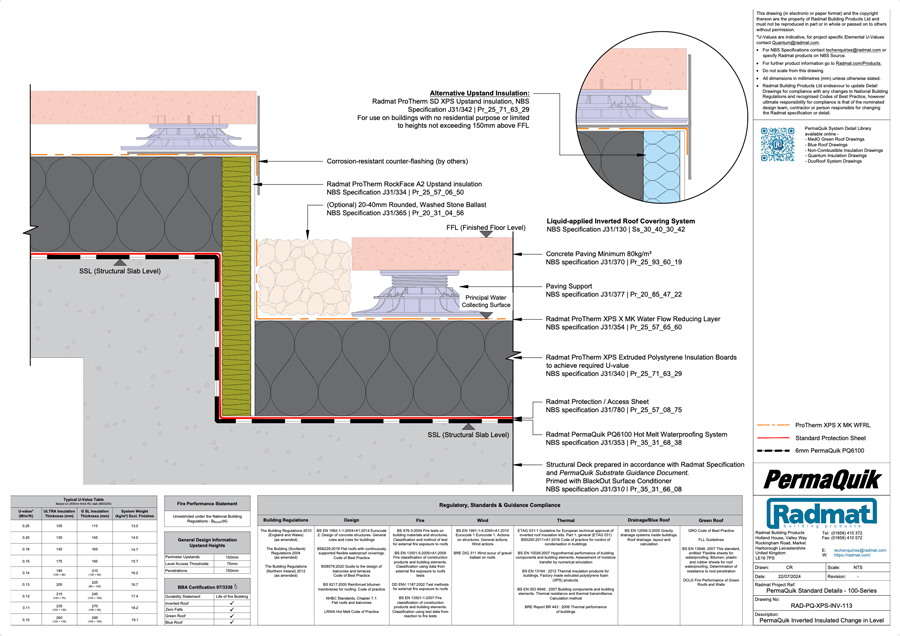

Level Change Details
Level Change Details
PermaQuik 114 CAD Details

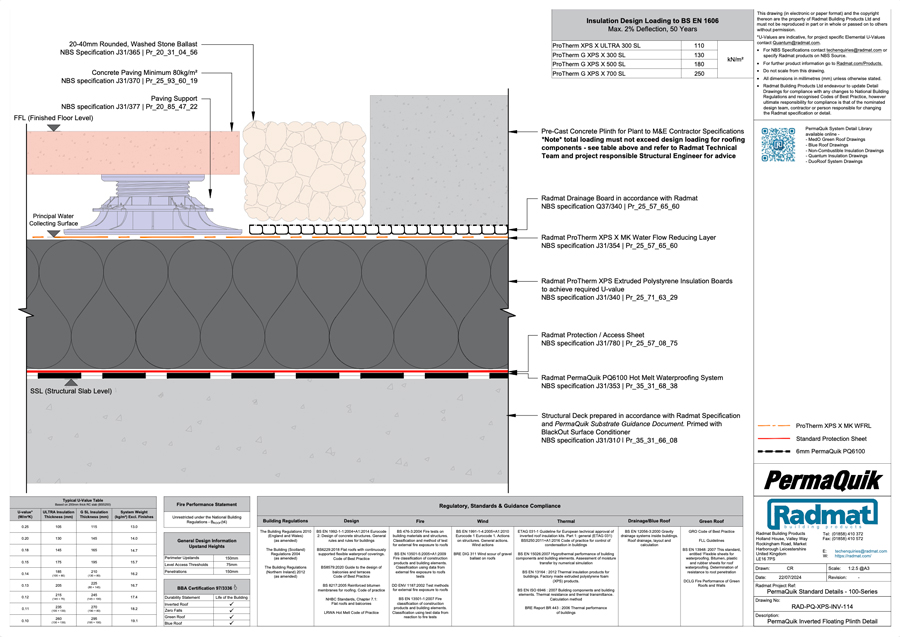

Floating Plinth Detail
Floating Plinth Detail

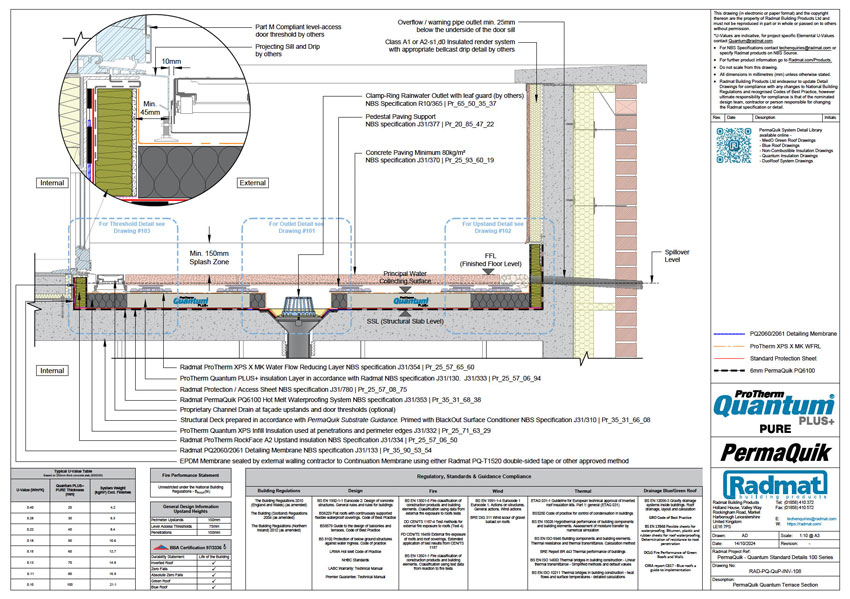

PermaQuik 115 CAD Details

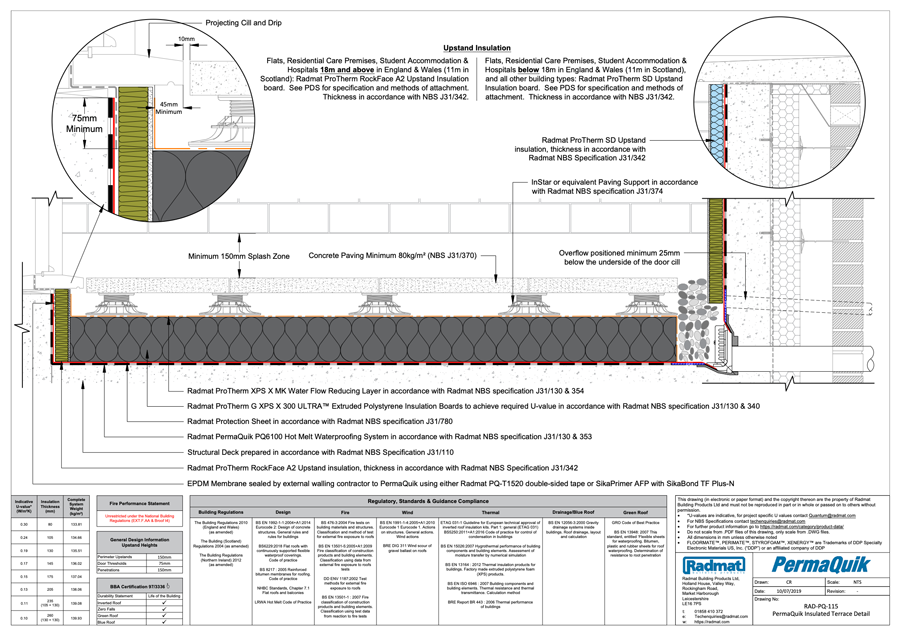

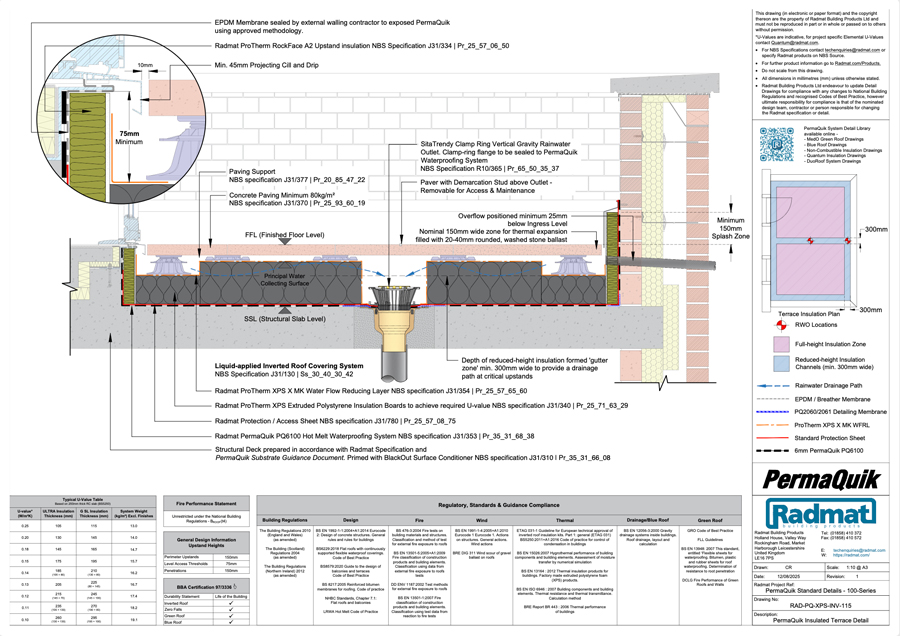

Insulated Terrace Detail
Insulated Terrace Detail
PermaQuik 116 CAD Details

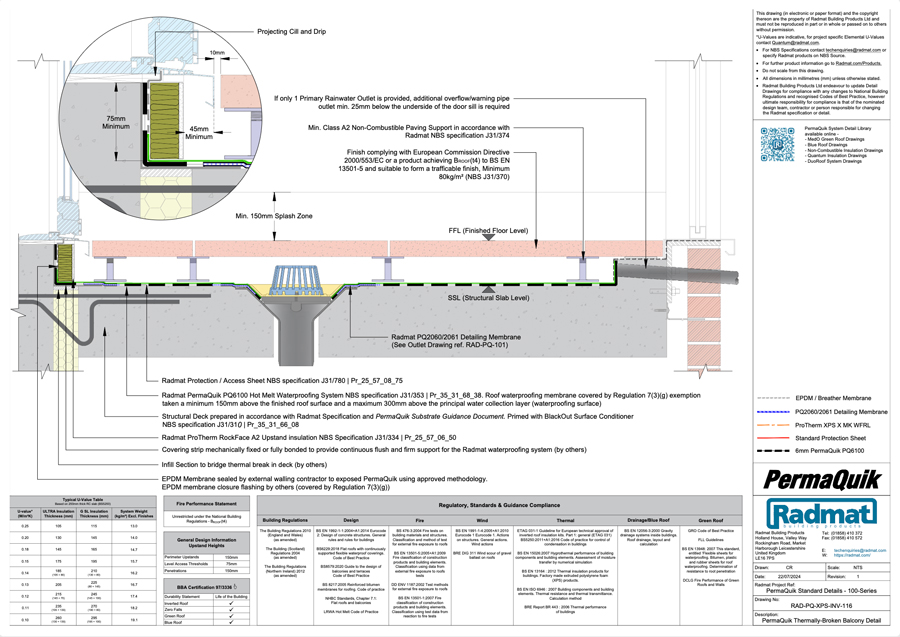

Un-Insulated Balcony Detail
Un-Insulated Balcony Detail
PermaQuik 117a CAD Details

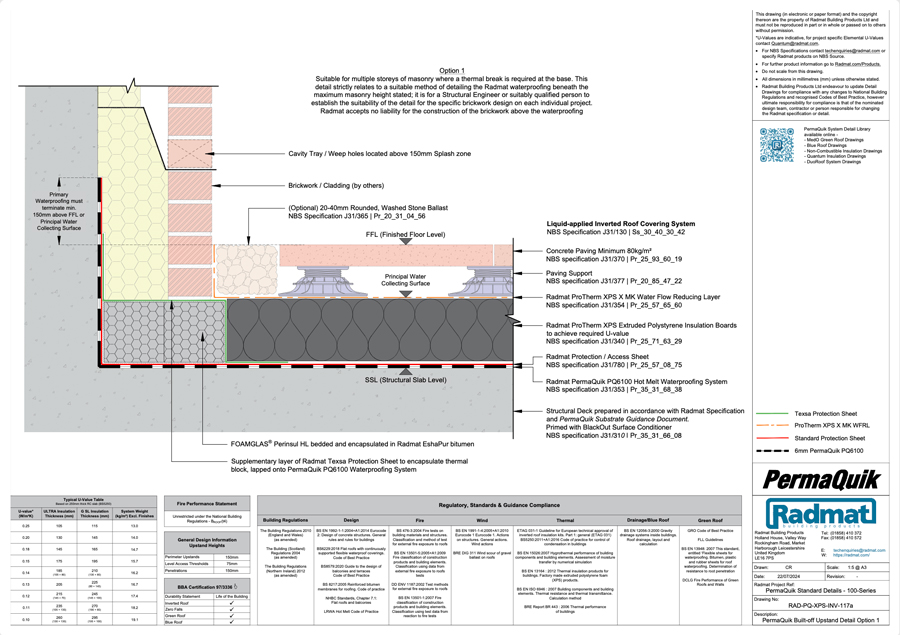

Built-off Upstand Detail Option 1
Built-off Upstand Detail Option 1

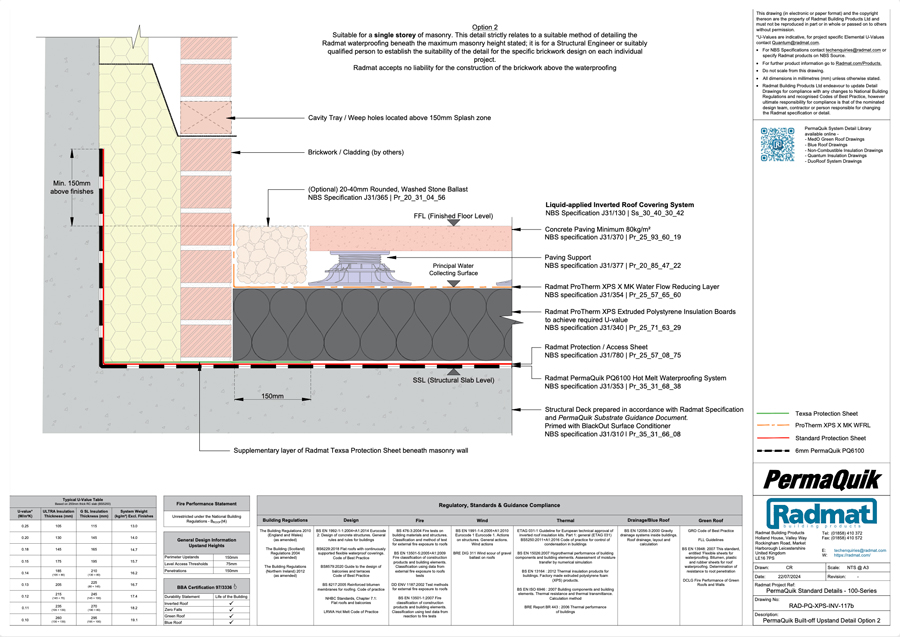

PermaQuik 117b CAD Details
Built-off Upstand Detail Option 2
Built-off Upstand Detail Option 2

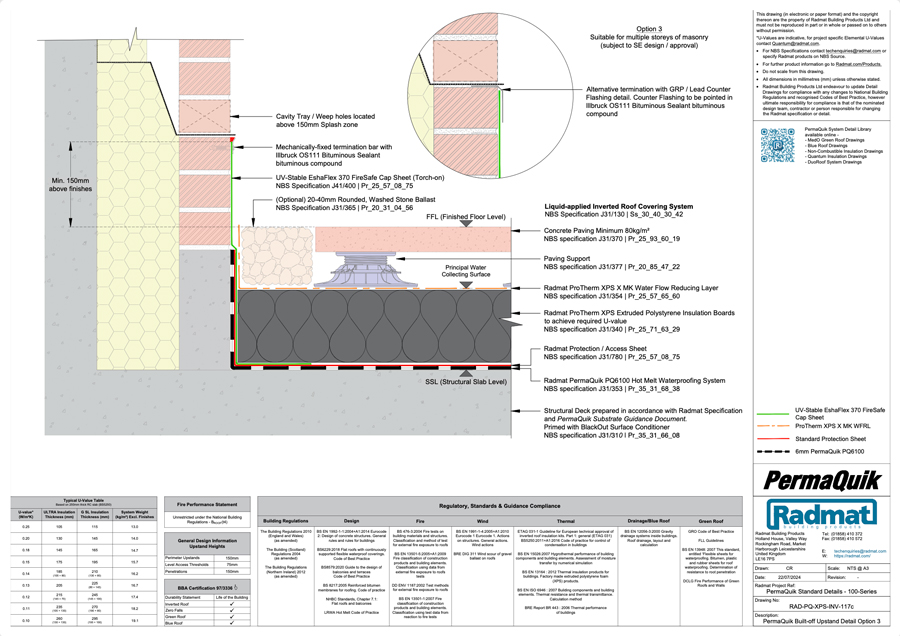

PermaQuik 117c CAD Details
Built-off Upstand Detail Option 3
Built-off Upstand Detail Option 3
PermaQuik 117d CAD Details

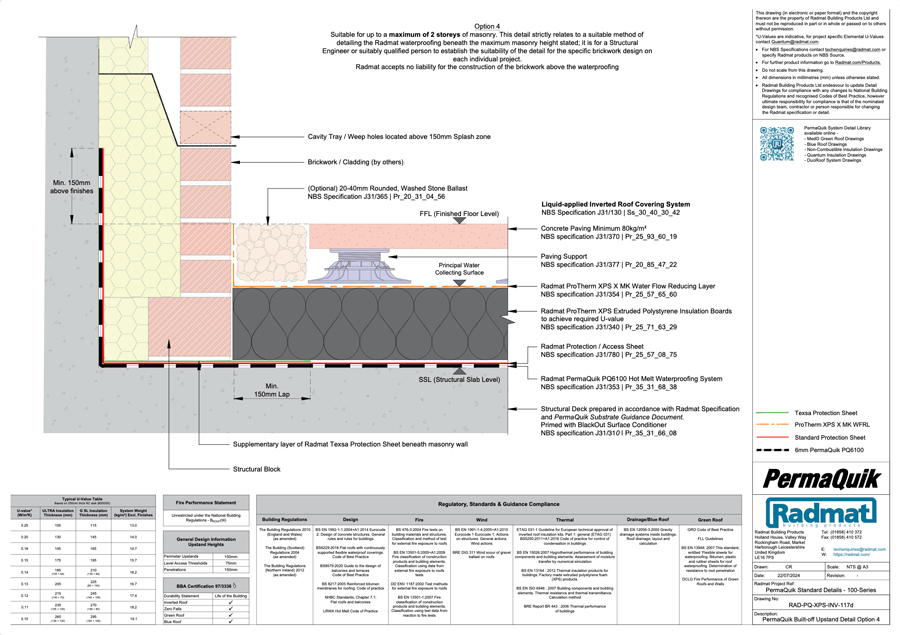

Built-off Upstand Detail Option 4
Built-off Upstand Detail Option 4
PermaQuik 117e CAD Details

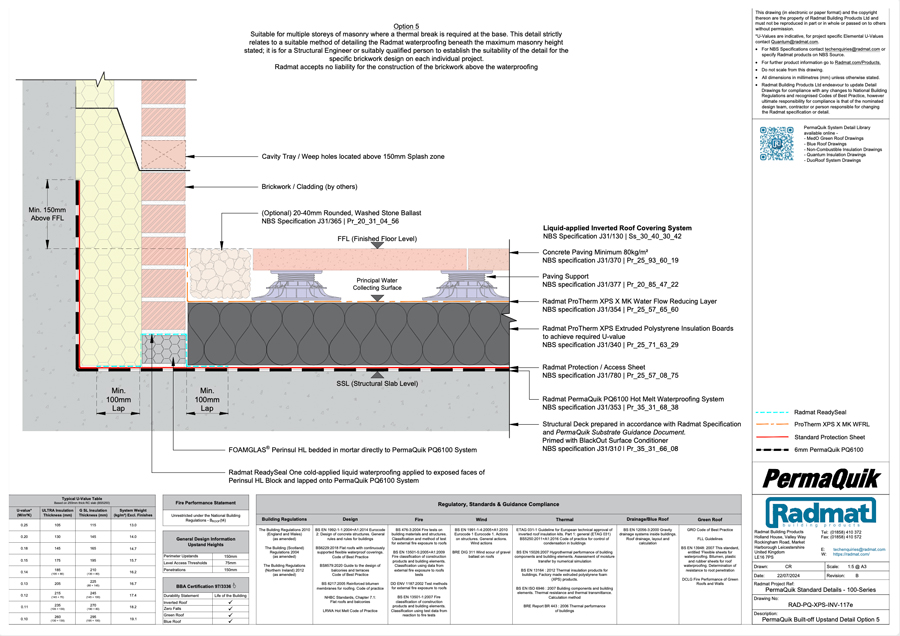

Built-off Upstand Detail Option 5
Built-off Upstand Detail Option 5
PermaQuik 118 CAD Details

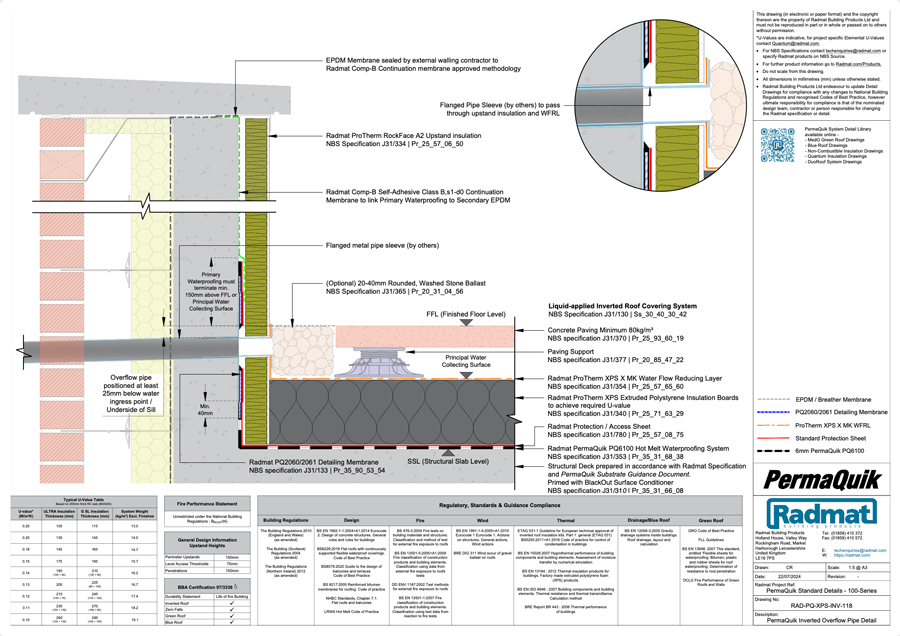

Parapet Overflow Outlet Detail
Parapet Overflow Outlet Detail
PermaQuik 119 CAD Details

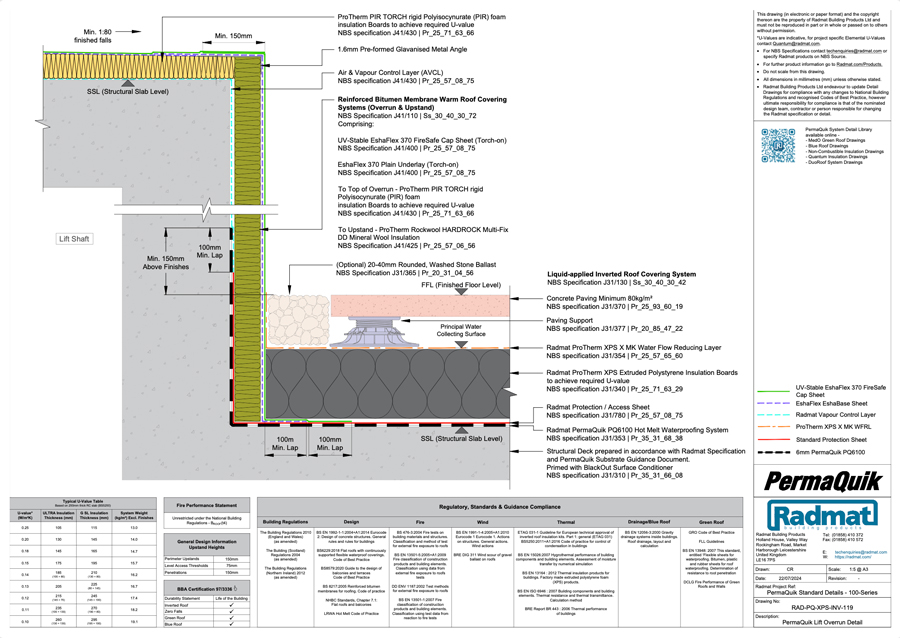

Lift Overrun Option Detail
Lift Overrun Option Detail
PermaQuik 119b CAD Details
Lift Overrun Option 2
Lift Overrun Option 2

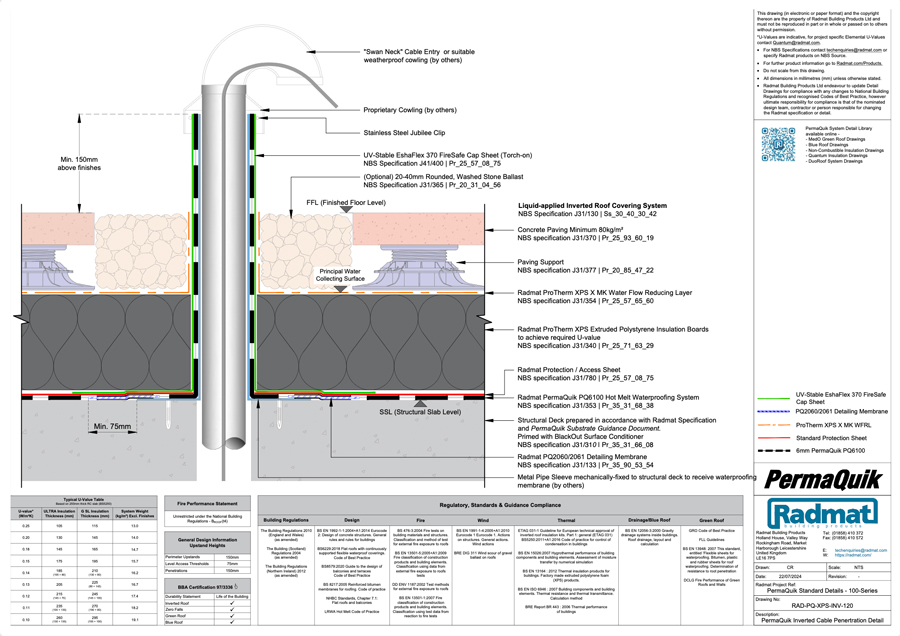

PermaQuik 120 CAD Details
Cable Penetration Detail
Cable Penetration Detail
PermaQuik 120a CAD Details

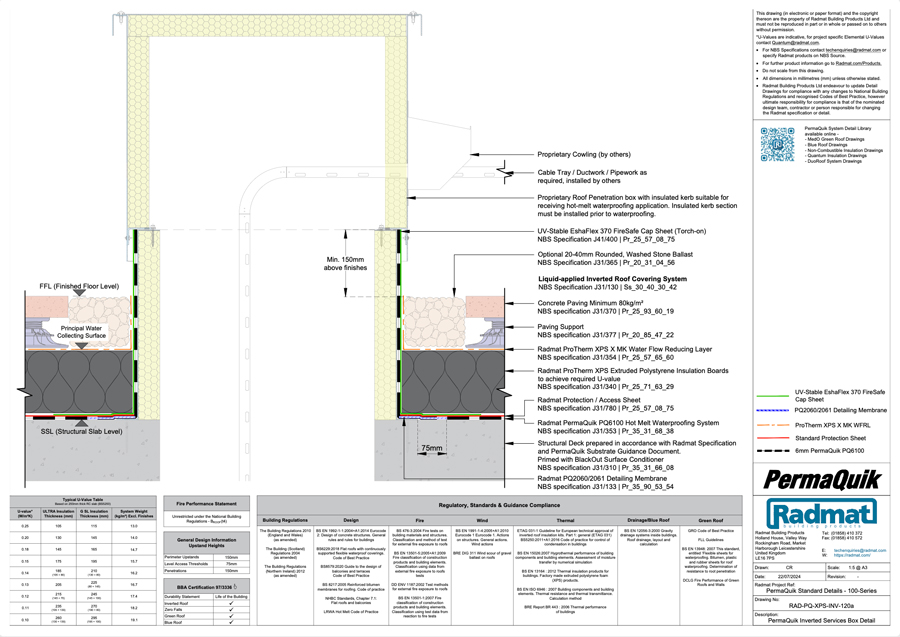

Services Box Detail - Slab Fixed
Services Box Detail - Slab Fixed
PermaQuik 120b CAD Details

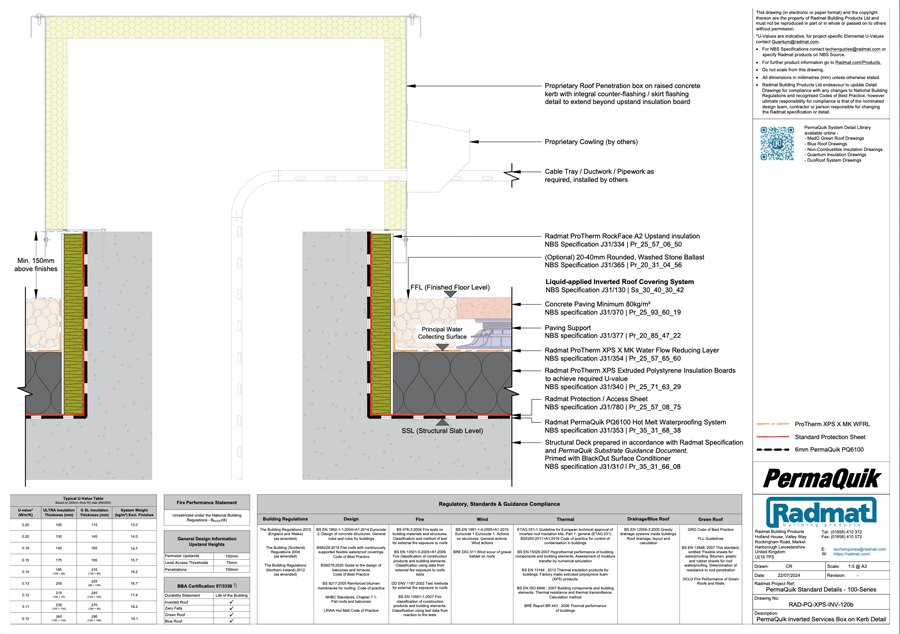

Services Box Detail - Raised Kerb
Services Box Detail - Raised Kerb
PermaQuik 120c CAD Details

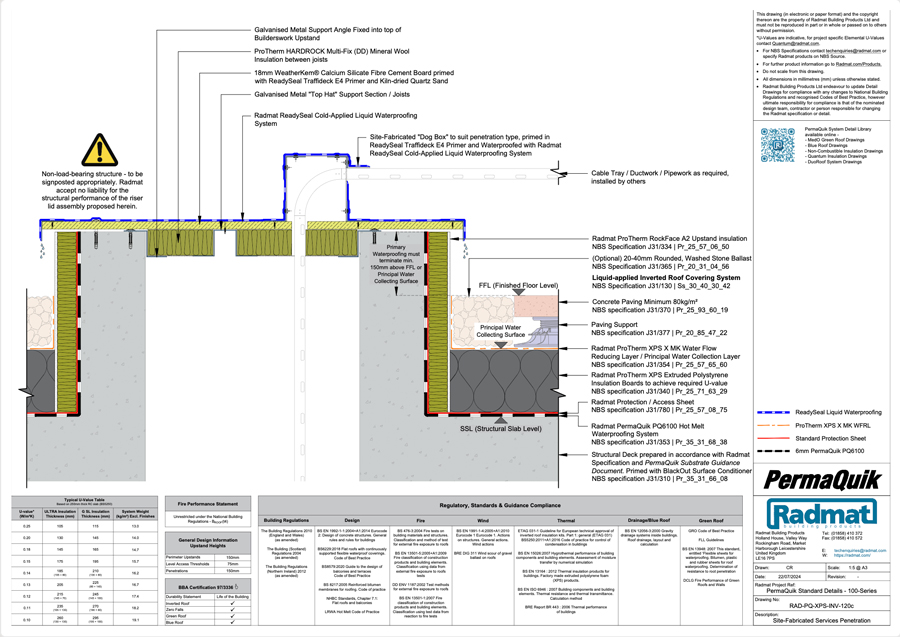

Site-Fabricated Services Penetration
Site-Fabricated Services Penetration

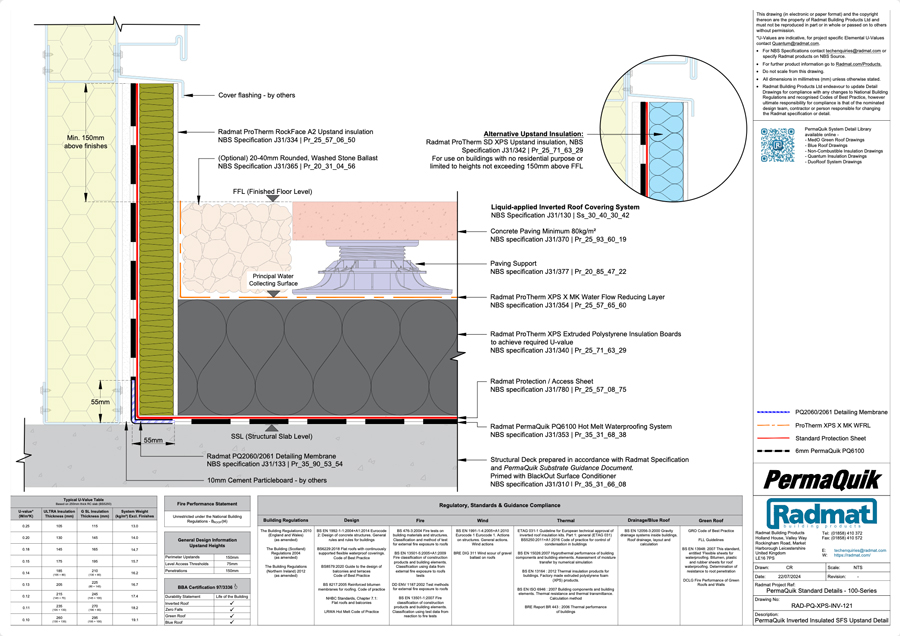

PermaQuik 121 CAD Details
Insulated SFS Upstand
Insulated SFS Upstand

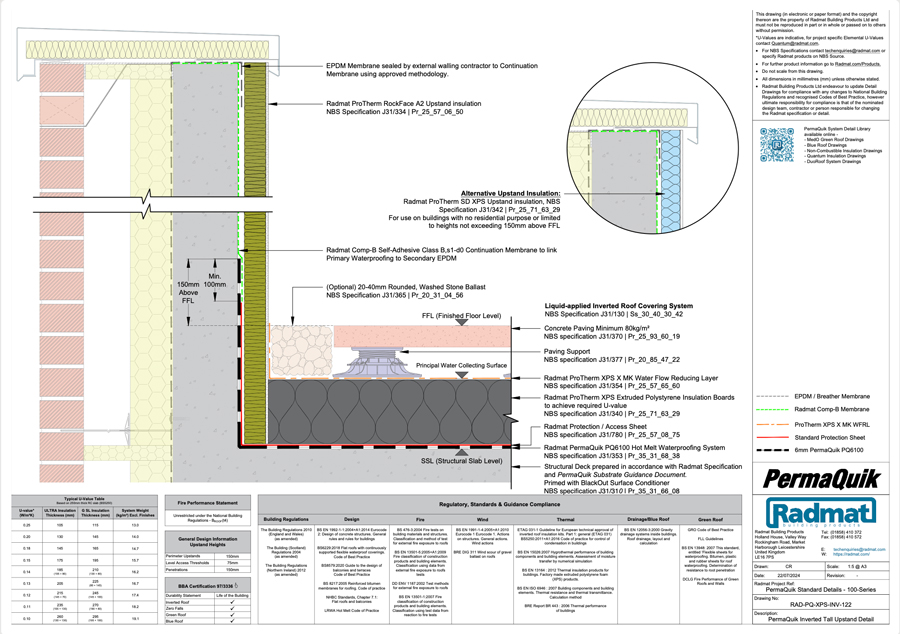

PermaQuik 122 CAD Details
Inverted Tall Upstand Detail
Inverted Tall Upstand Detail
PermaQuik 123 CAD Details

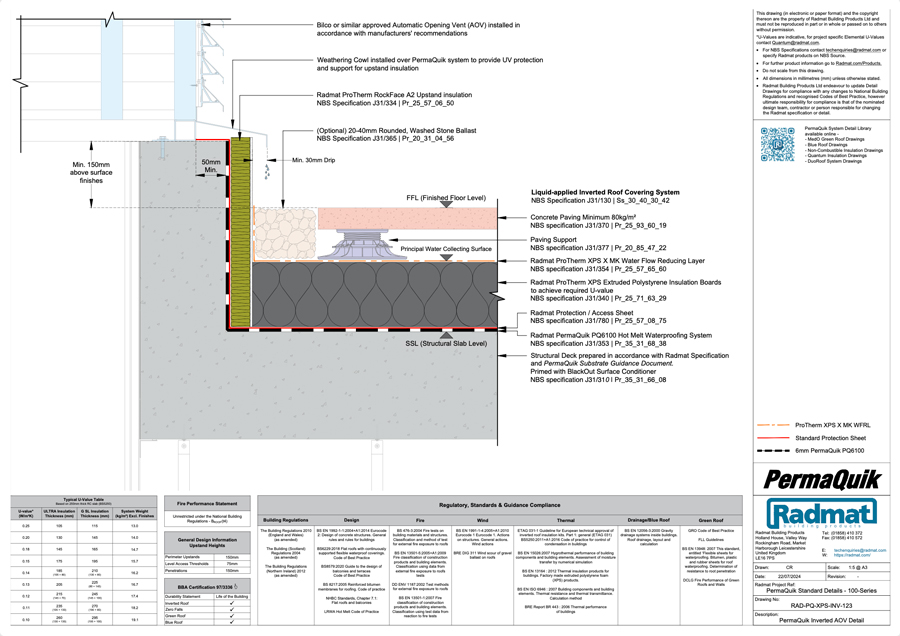

AOV Detail
AOV Detail
PermaQuik 124 CAD Details

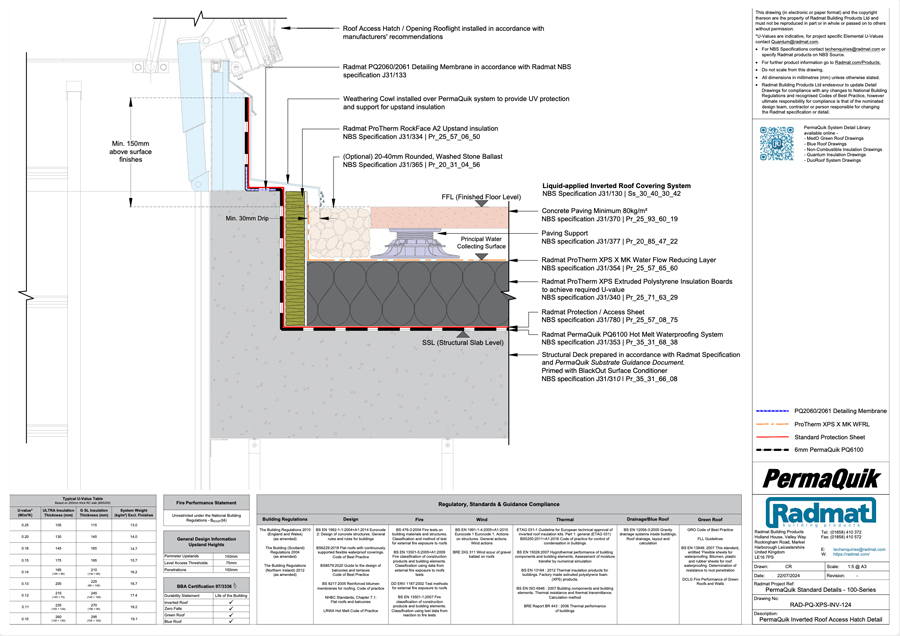

Roof Access Hatch Detail
Roof Access Hatch Detail
PermaQuik 125a CAD Details

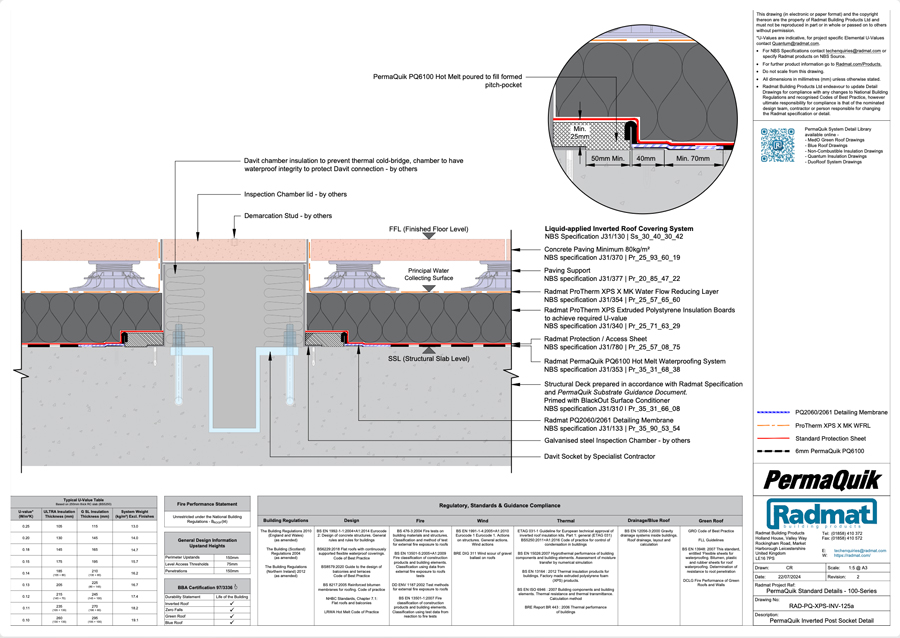

Davit Socket Detail
Davit Socket Detail
PermaQuik 125b CAD Details

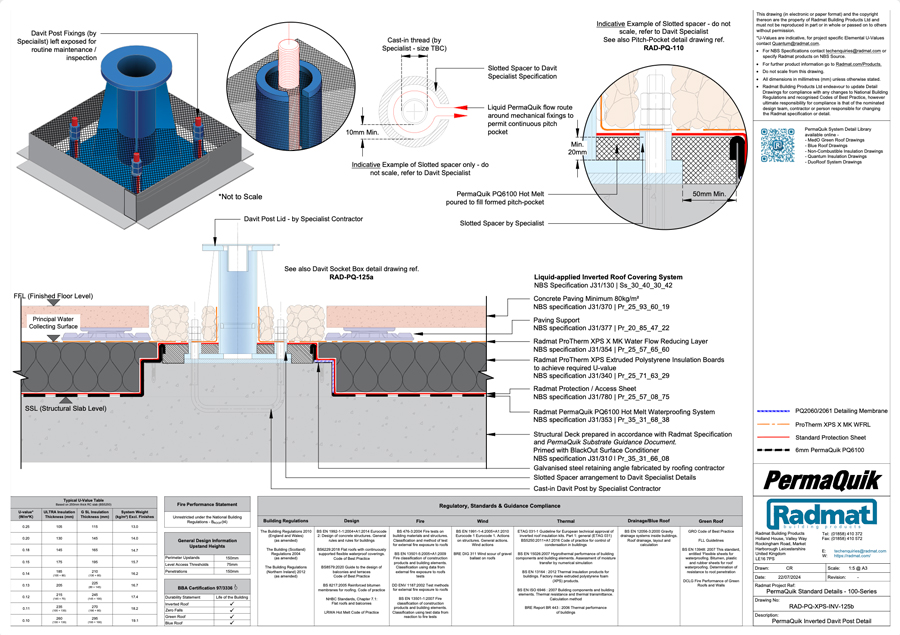

Davit Post Detail
Davit Post Detail
PermaQuik 126 CAD Details

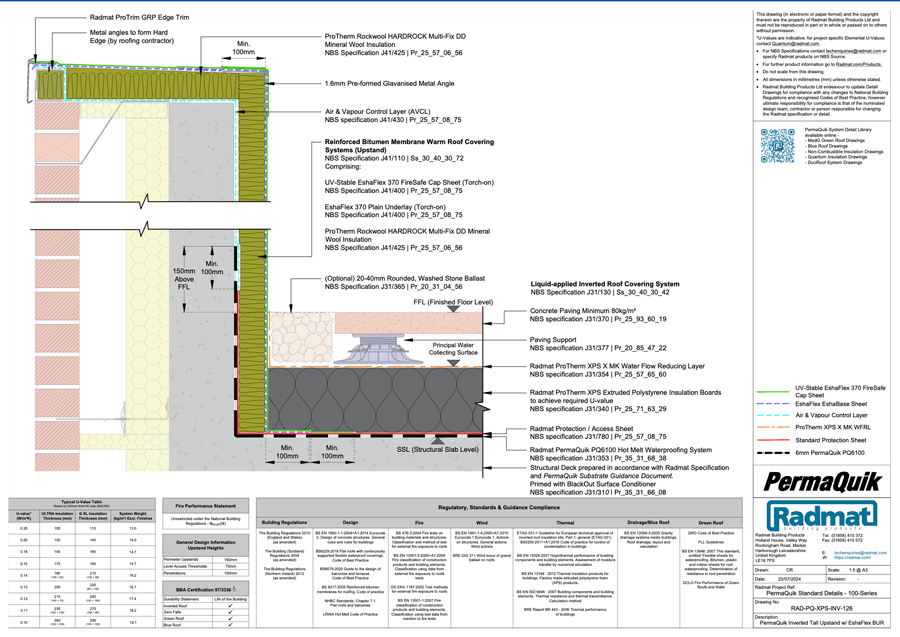

Tall Built-up Warm Upstand Detail - MWl
Tall Built-up Warm Upstand Detail - MWl
PermaQuik 126a CAD Details

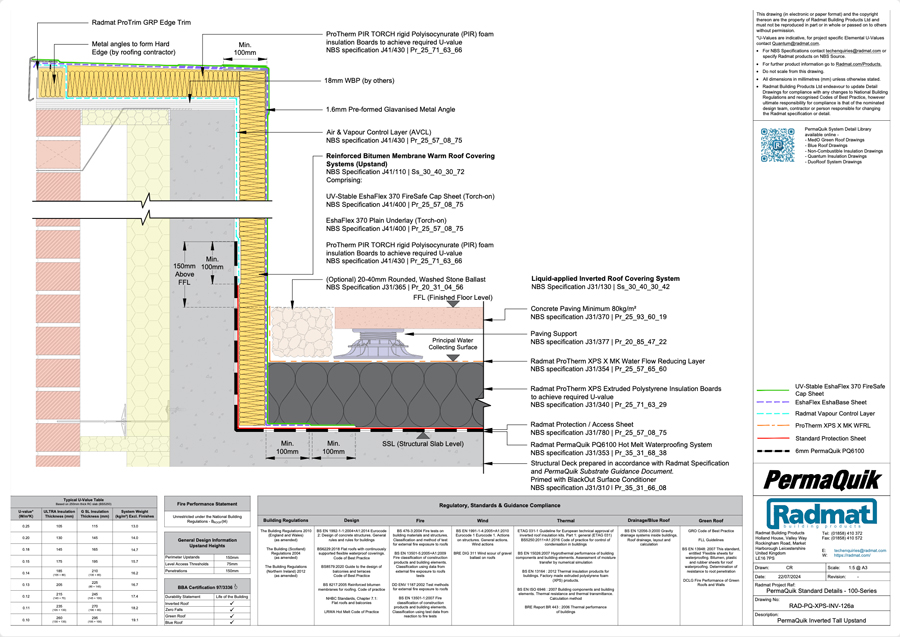

Tall Built-up Warm Upstand Detail - PIR
Tall Built-up Warm Upstand Detail - PIR
PermaQuik 126b CAD Details

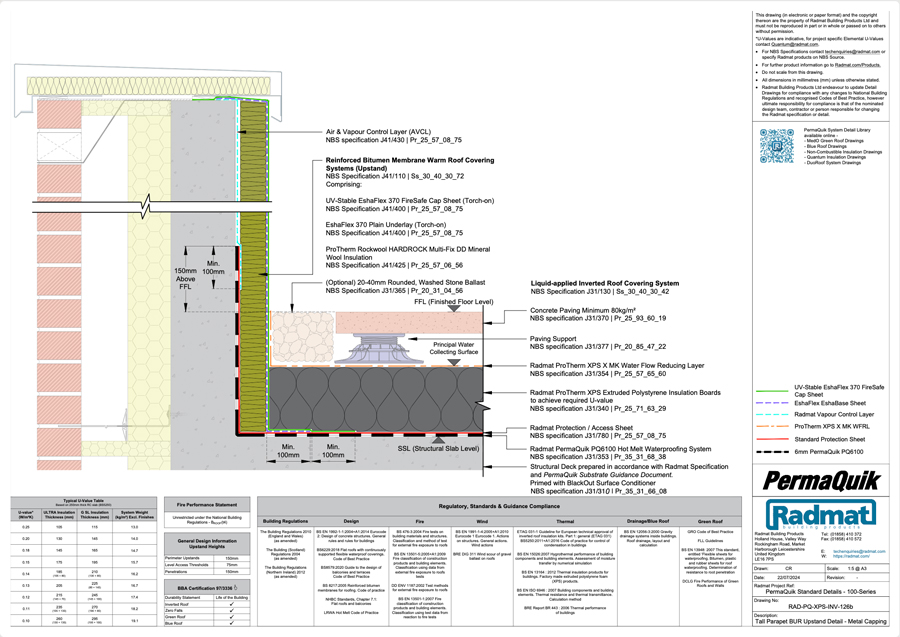

Tall Built-up Warm Upstand Detail - Capping
Tall Built-up Warm Upstand Detail - Capping

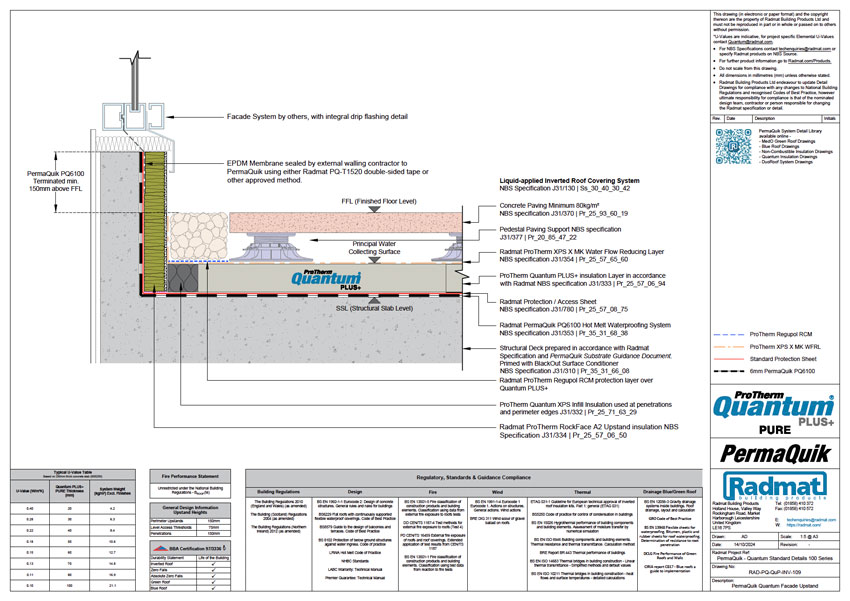

PermaQuik 127 CAD Details

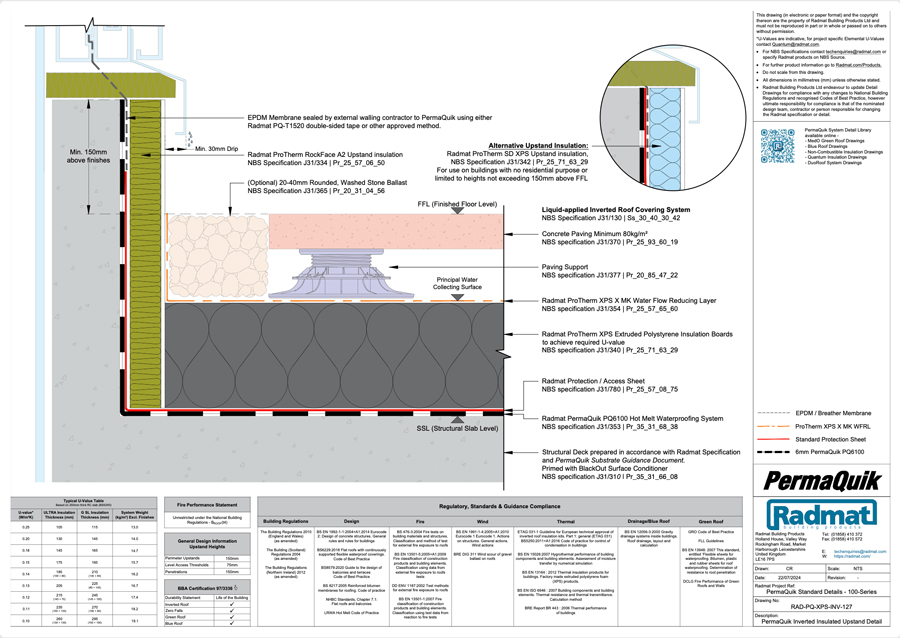

Insulated Façade Upstand Detail
Insulated Façade Upstand Detail
PermaQuik 128 CAD Details

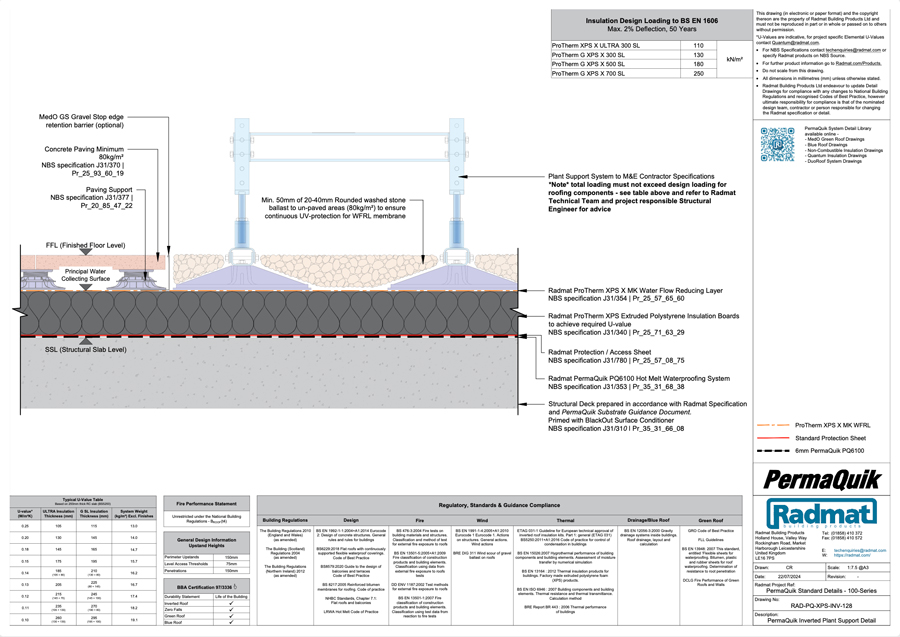

Plant Support Detail - Bigfoot
Plant Support Detail - Bigfoot
PermaQuik 129 CAD Details

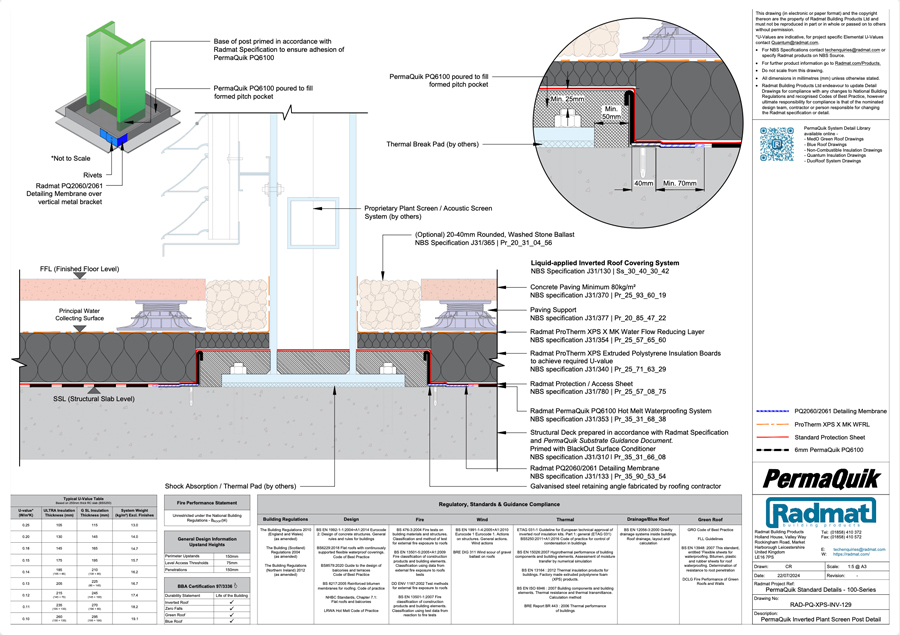

Plant Screen Detail
Plant Screen Detail
PermaQuik 130 CAD Details

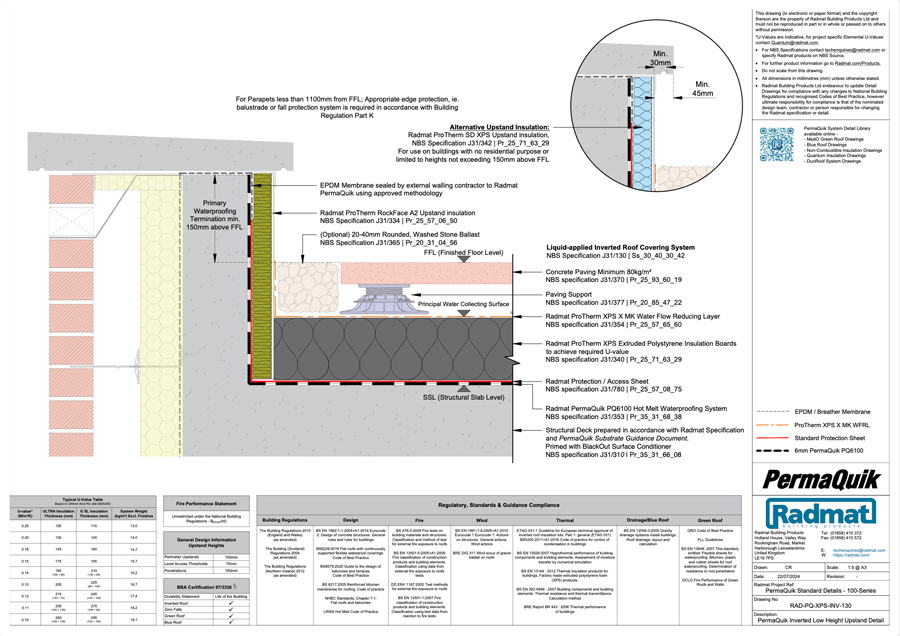

Low Height Upstand Detail
Low Height Upstand Detail
PermaQuik 131a CAD Details

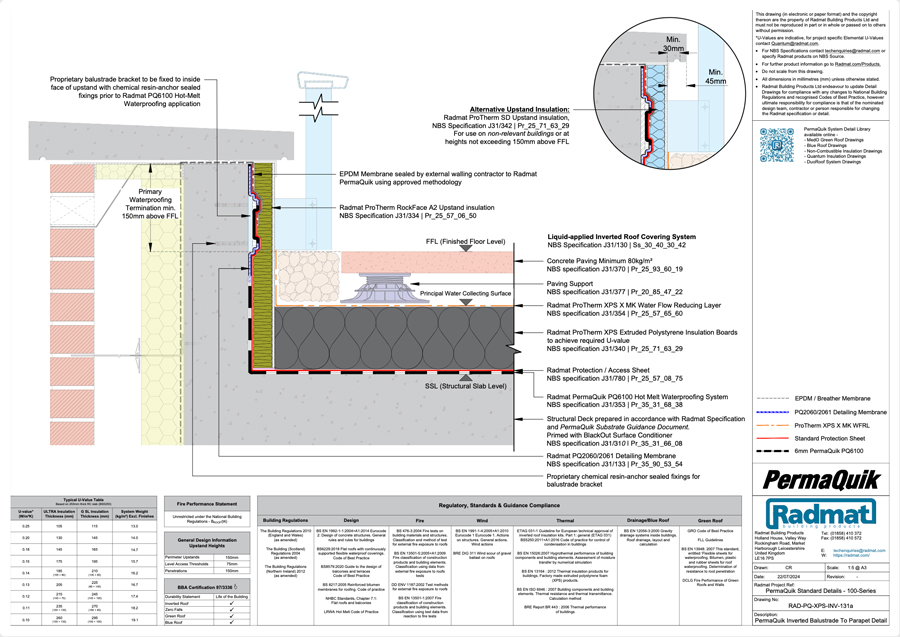

Balustrade Parapet Detail - side-fixed
Balustrade Parapet Detail - side-fixed
PermaQuik 131b CAD Details

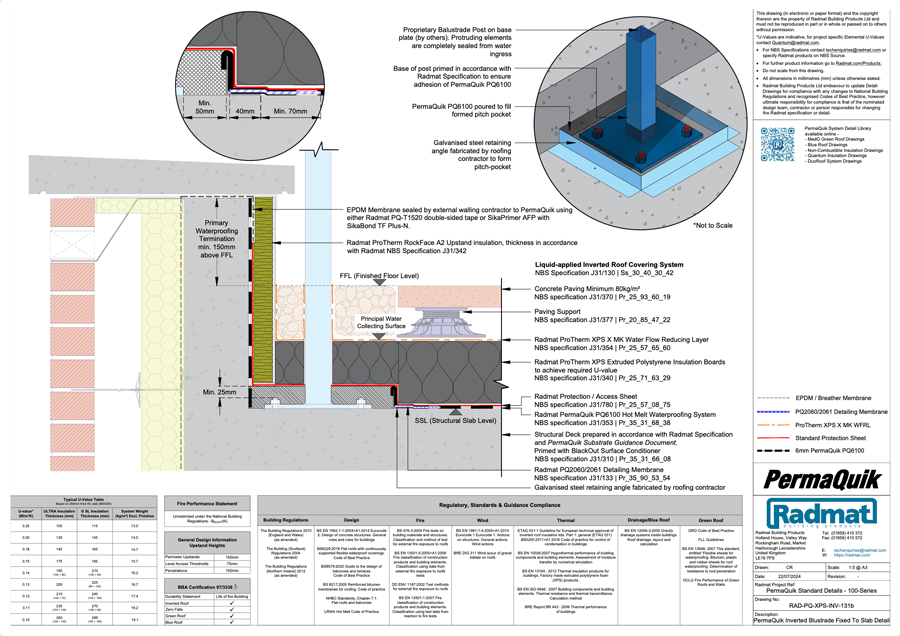

Balustrade Parapet Detail - base-fixed
Balustrade Parapet Detail - base-fixed
300 Series – Extensive Green Roof
PermaQuik 300 CAD Details
Inverted Extensive Roof Section
Inverted Extensive Roof Section
PermaQuik 301 CAD Details
Inverted Extensive Outlet Detail
Inverted Extensive Outlet Detail
PermaQuik 302 CAD Details
Inverted Extensive Perimeter Upstand
Inverted Extensive Perimeter Upstand
PermaQuik 303 CAD Details
Inverted Extensive Facade Upstand
Inverted Extensive Facade Upstand
PermaQuik 304 CAD Details
Inverted Extensive Parapet Outlet
Inverted Extensive Parapet Outlet
PermaQuik 305 CAD Details
Inverted Extensive PV Support
Inverted Extensive PV Support
PermaQuik 306 CAD Details
Inverted Extensive Cold Pipe Penetration
Inverted Extensive Cold Pipe Penetration
PermaQuik 307 CAD Details
Inverted Extensive Hot Pipe Penetration
Inverted Extensive Hot Pipe Penetration
PermaQuik 308 CAD Details
Inverted Extensive Plinth
Inverted Extensive Plinth
400 Series – Biodiverse Roof
PermaQuik 400 CAD Details
Inverted Biodiverse Roof Section
Inverted Biodiverse Roof Section
PermaQuik 401 CAD Details
Inverted Biodiverse Outlet Detail
Inverted Biodiverse Outlet Detail
PermaQuik 402 CAD Details
Inverted Biodiverse Perimeter Upstand
Inverted Biodiverse Perimeter Upstand
PermaQuik 403 CAD Details
Inverted Biodiverse Facade Upstand
Inverted Biodiverse Facade Upstand
PermaQuik 404 CAD Details
Inverted Biodiverse Parapet Outlet
Inverted Biodiverse Parapet Outlet
PermaQuik 405 CAD Details
Inverted Biodiverse PV Support
Inverted Biodiverse PV Support
PermaQuik 406 CAD Details
Inverted Biodiverse Cold Pipe Penetration
Inverted Biodiverse Cold Pipe Penetration
PermaQuik 407 CAD Details
Inverted Biodiverse Hot Pipe Penetration
Inverted Biodiverse Hot Pipe Penetration
PermaQuik 408 CAD Details
Inverted Biodiverse Plinth
Inverted Biodiverse Plinth
500 Series – Wildflower Green Roof
PermaQuik 500 CAD Details
Inverted Wildflower Roof Section
Inverted Wildflower Roof Section
PermaQuik 501 CAD Details
Inverted Wildflower Outlet Detail
Inverted Wildflower Outlet Detail
PermaQuik 502 CAD Details
Inverted Wildflower Perimeter Upstand
Inverted Wildflower Perimeter Upstand
PermaQuik 503 CAD Details
Inverted Wildflower Facade Upstand
Inverted Wildflower Facade Upstand
PermaQuik 504 CAD Details
Inverted Wildflower Parapet Outlet
Inverted Wildflower Parapet Outlet
PermaQuik 505 CAD Details
Inverted Wildflower PV Support
Inverted Wildflower PV Support
PermaQuik 506 CAD Details
Inverted Wildflower Cold Pipe Penetration
Inverted Wildflower Cold Pipe Penetration
PermaQuik 507 CAD Details
Inverted Wildflower Hot Pipe Penetration
Inverted Wildflower Hot Pipe Penetration
PermaQuik 508 CAD Details
Inverted Wildflower Plinth
Inverted Wildflower Plinth
700 Series – Blue Roof Un-insulated
PermaQuik 700a CAD Details
Blue Roof Section - Paved, Un-insulated
Blue Roof Section - Paved, Un-insulated
PermaQuik 700b CAD Details
Blue Roof Section - Extensive Green, Un-insulated
Blue Roof Section - Extensive Green, Un-insulated
PermaQuik 700c CAD Details
Blue Roof Section - Bedded Pavers, Un-insulated
Blue Roof Section - Bedded Pavers, Un-insulated
PermaQuik 701a CAD Details
Blue Roof Control Outlet Detail - Paved, Un-insulated
Blue Roof Control Outlet Detail - Paved, Un-insulated
PermaQuik 701b CAD Details
Blue Roof Control Outlet Detail - Extensive Green, Un-insulated
Blue Roof Control Outlet Detail - Extensive Green, Un-insulated
PermaQuik 701c CAD Details
Blue Roof Control Outlet Detail - Bedded Pavers, Un-insulated
Blue Roof Control Outlet Detail - Bedded Pavers, Un-insulated
PermaQuik 702a CAD Details
Blue Roof Perimeter Upstand Detail - Paved, Un-insulated
Blue Roof Perimeter Upstand Detail - Paved, Un-insulated
PermaQuik 702b CAD Details
Blue Roof Perimeter Upstand Detail - Extensive Green, Un-insulated
Blue Roof Perimeter Upstand Detail - Extensive Green, Un-insulated
PermaQuik 702c CAD Details
Blue Roof Perimeter Upstand Detail - Bedded Pavers, Un-insulated
Blue Roof Perimeter Upstand Detail - Bedded Pavers, Un-insulated
PermaQuik 703a CAD Details
Blue Roof Penetration Detail - Paved, Un-insulated
Blue Roof Penetration Detail - Paved, Un-insulated
PermaQuik 703b CAD Details
Blue Roof Penetration Detail - Extensive Green, Un-insulated
Blue Roof Penetration Detail - Extensive Green, Un-insulated
PermaQuik 703c CAD Details
Blue Roof Penetration Detail - Bedded Pavers, Un-insulated
Blue Roof Penetration Detail - Bedded Pavers, Un-insulated
PermaQuik 704a CAD Details
Blue Roof Drainage Detail - Paved, Un-insulated
Blue Roof Drainage Detail - Paved, Un-insulated
PermaQuik 704b CAD Details
Blue Roof Drainage Detail - Extensive Green, Un-insulated
Blue Roof Drainage Detail - Extensive Green, Un-insulated
PermaQuik 704c CAD Details
Blue Roof Drainage Detail - Bedded Pavers, Un-insulated
Blue Roof Drainage Detail - Bedded Pavers, Un-insulated
PermaQuik 705c CAD Details
Blue Roof Threshold Detail - Bedded Pavers, Un-insulated
Blue Roof Threshold Detail - Bedded Pavers, Un-insulated
PermaQuik 706c CAD Details
Blue Roof Slot Drain Detail - Bedded Pavers, Un-insulated
Blue Roof Slot Drain Detail - Bedded Pavers, Un-insulated
PermaQuik 707c CAD Details
Blue Roof Bund Wall Detail - Bedded Pavers, Un-insulated
Blue Roof Bund Wall Detail - Bedded Pavers, Un-insulated
800 Series – Blue Roof Insulated
PermaQuik 800a CAD Details
Blue Roof Section - Paved
Blue Roof Section - Paved
PermaQuik 800b CAD Details
Blue Roof Section - Extensive Green
Blue Roof Section - Extensive Green
PermaQuik 800c CAD Details
Blue Roof Section - Bedded Pavers
Blue Roof Section - Bedded Pavers
PermaQuik 801a CAD Details
Blue Roof Control Outlet Detail - Paved
Blue Roof Control Outlet Detail - Paved
PermaQuik 801b CAD Details
Blue Roof Control Outlet Detail - Extensive Green
Blue Roof Control Outlet Detail - Extensive Green
PermaQuik 801c CAD Details
Blue Roof Control Outlet Detail - Bedded Pavers
Blue Roof Control Outlet Detail - Bedded Pavers
PermaQuik 802a CAD Details
Blue Roof Perimeter Upstand Detail - Paved
Blue Roof Perimeter Upstand Detail - Paved
PermaQuik 802b CAD Details
Blue Roof Perimeter Upstand Detail - Extensive Green
Blue Roof Perimeter Upstand Detail - Extensive Green
PermaQuik 802c CAD Details
Blue Roof Perimeter Upstand Detail - Bedded Pavers
Blue Roof Perimeter Upstand Detail - Bedded Pavers
PermaQuik 803a CAD Details
Blue Roof Penetration Detail - Paved
Blue Roof Penetration Detail - Paved
PermaQuik 803b CAD Details
Blue Roof Penetration Detail - Extensive Green
Blue Roof Penetration Detail - Extensive Green
PermaQuik 803c CAD Details
Blue Roof Penetration Detail - Bedded Pavers
Blue Roof Penetration Detail - Bedded Pavers
PermaQuik 804a CAD Details
Blue Roof Drainage Detail - Paved
Blue Roof Drainage Detail - Paved
PermaQuik 804b CAD Details
Blue Roof Drainage Detail - Extensive Green
Blue Roof Drainage Detail - Extensive Green
PermaQuik 804c CAD Details
Blue Roof Drainage Detail - Bedded Pavers
Blue Roof Drainage Detail - Bedded Pavers
PermaQuik 805a CAD Details
Blue Roof Threshold Detail - Paved
Blue Roof Threshold Detail - Paved
PermaQuik 805c CAD Details
Blue Roof Threshold Detail - Bedded Pavers
Blue Roof Threshold Detail - Bedded Pavers
PermaQuik 806c CAD Details
Blue Roof Slot Drain Detail - Bedded Pavers
Blue Roof Slot Drain Detail - Bedded Pavers
PermaQuik 807a CAD Details
Blue Roof Bund Wall Detail - Paved
Blue Roof Bund Wall Detail - Paved
PermaQuik 807c CAD Details
Blue Roof Bund Wall Detail - Bedded Finishes
Blue Roof Bund Wall Detail - Bedded Finishes
PermaQuik 808a CAD Details
Blue Roof Pipe Penetration Detail, Paved - Insulated
Blue Roof Pipe Penetration Detail, Paved - Insulated
PermaQuik 809a CAD Details
Blue Roof Built-off Upstand - Paved
Blue Roof Built-off Upstand - Paved
PermaQuik BUR Non-combustible Details
PermaQuik FOAMGLAS 100 CAD Details
Warm Build-up Section
Warm Build-up Section
PermaQuik FOAMGLAS 101 CAD Details
Warm RWO Section
Warm RWO Section
PermaQuik FOAMGLAS 102a CAD Details
Warm Parapet Upstand A
Warm Parapet Upstand A
PermaQuik FOAMGLAS 102b CAD Details
Warm Parapet Upstand B
Warm Parapet Upstand B
PermaQuik FOAMGLAS 103a CAD Details
Warm Threshold Upstand A
Warm Threshold Upstand A
PermaQuik FOAMGLAS 103b CAD Details
Warm Threshold Upstand B
Warm Threshold Upstand B
PermaQuik FOAMGLAS 104a CAD Details
Warm Parapet Outlet A
Warm Parapet Outlet A
PermaQuik FOAMGLAS 104b CAD Details

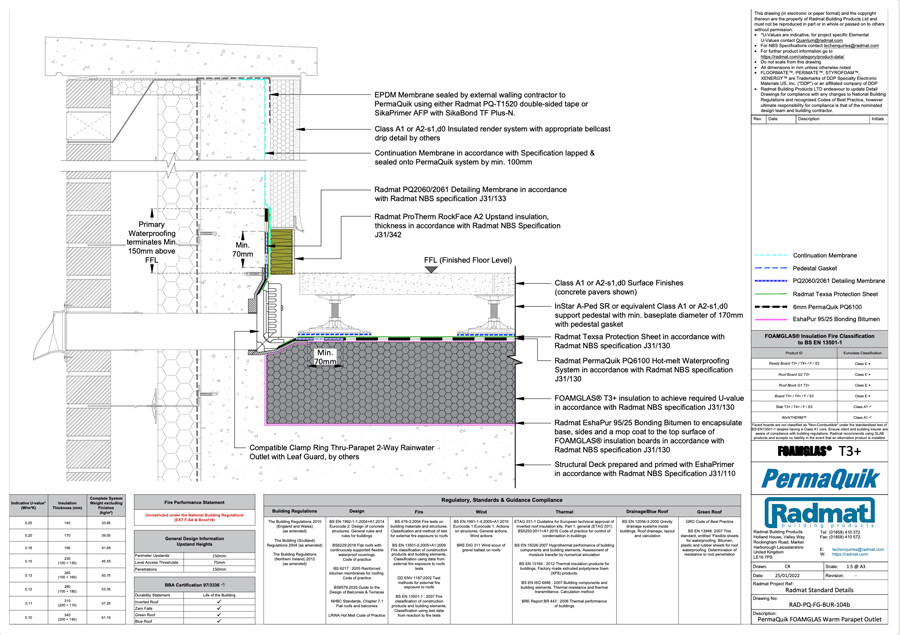

Warm Parapet Outlet
Warm Parapet Outlet
PermaQuik FOAMGLAS 105 CAD Details
Warm Anchor Post
Warm Anchor Post
PermaQuik FOAMGLAS 106 CAD Details
Warm Cold Pipe Detail
Warm Cold Pipe Detail
PermaQuik FOAMGLAS 107 CAD Details
Warm Hot Pipe Detail
Warm Hot Pipe Detail
PermaQuik FOAMGLAS 108 CAD Details
Warm Terrace Section
Warm Terrace Section
PermaQuik FOAMGLAS 109 CAD Details
Warm Balcony Section
Warm Balcony Section
PermaQuik FOAMGLAS 110 CAD Details
Warm Facade Upstand
Warm Facade Upstand
PermaQuik INV Non-combustible Details
PermaQuik INVATHERM 100 CAD Details
Build-up Section
Build-up Section
PermaQuik INVATHERM 101 CAD Details
RWO Detail
RWO Detail
PermaQuik INVATHERM 102a CAD Details
High Parapet Upstand Detail A
High Parapet Upstand Detail A
PermaQuik INVATHERM 102b CAD Details
Low Parapet Upstand Detail B
Low Parapet Upstand Detail B
PermaQuik INVATHERM 103a CAD Details
Threshold Upstand Detail A
Threshold Upstand Detail A
PermaQuik INVATHERM 103b CAD Details
Threshold Upstand Detail B
Threshold Upstand Detail B
PermaQuik INVATHERM 104 CAD Details
Parapet Outlet Detail
Parapet Outlet Detail
PermaQuik INVATHERM 105 CAD Details
Roof Anchor Detail
Roof Anchor Detail
PermaQuik INVATHERM 106a CAD Details
Cold Pipe Detail A
Cold Pipe Detail A
PermaQuik INVATHERM 106b CAD Details
Cold Pipe Detail B
Cold Pipe Detail B
PermaQuik INVATHERM 107a CAD Details
Hot Pipe Detail A
Hot Pipe Detail A
PermaQuik INVATHERM 107b CAD Details
Hot Pipe Detail B
Hot Pipe Detail B
PermaQuik INVATHERM 108 CAD Details
Terrace Detail
Terrace Detail
PermaQuik INVATHERM 109 CAD Details
Balcony Detail
Balcony Detail
PermaQuik INVATHERM 110 CAD Details
Facade Upstand Detail
Facade Upstand Detail
