Product Data

DESCRIPTION

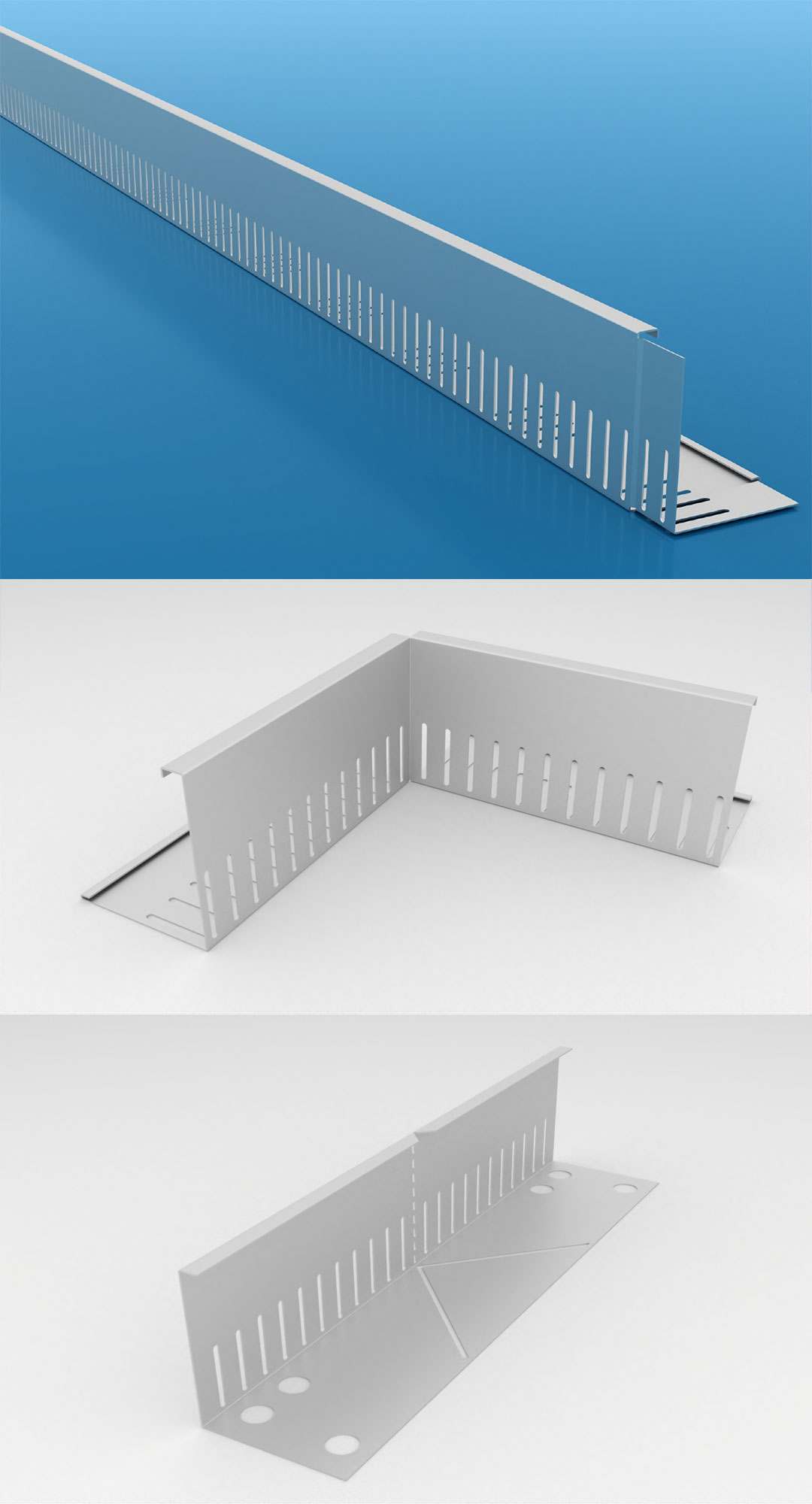

EdgePro offers a quick and easy-to-install edge restraint system designed for gravel ballast retention on green roofs. Additionally,

it serves as a durable divider between gravel ballast and green roof growing mediums, ensuring the maintenance of gravel fire breaks and minimising vegetation encroachment into the gravel margin.

The slotted vertical face facilitates water drainage, while the wide base leg provides stability without penetrating the waterproofing. Made from 1.5mm aluminium, each 2.5m length of EdgePro features an integrated joint for seamless connection to another EdgePro section, eliminating the need for separate jointing pieces in continuous installations. The twice-folded top profile enhances strength, and pre-formed 90° corner sections ensure a high-quality finish. EdgePro comes in Mill Finish as standard but is also available in Black Powder Coated and any powder-coated colour – contact Radmat Building Products for lead times.

Curved lengths are also available. These also have an integrated joint in one end.

Available in a range of sizes:

– 50mm

– 75mm

– 100mm

– 120mm

– 150mm

– 175mm

– 200mm

– 250mm

– 300mm

Product range for each size: Mill Finish as standard / Black Powder Coated as option (extended lead time)

– 2.5m lengths with integrated joint

– 90° Internal corner

– 90° External corner

Mill Finish only:

– Additional joints

– Variable angle corner joint

– Curve profile

APPLICATION

Loose lay over a suitable Radmat waterproofing membrane, ProTherm inverted roof insulation WFRL or MedO drainage/retention board. Connect each length by slotting the tongue into the folded end of the next piece. Where MedO EdgePro needs to be cut to length ensure the correct end is cut to enable location in to the lengths on either side. Jointing pieces are available should they be required.
